Microchip Technology M2S025-1VFG400
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 323.62 | Dhs. 323.62 |
| 15+ | Dhs. 313.42 | Dhs. 4,701.30 |
| 25+ | Dhs. 306.60 | Dhs. 7,665.00 |
| 50+ | Dhs. 289.57 | Dhs. 14,478.50 |
| 100+ | Dhs. 255.50 | Dhs. 25,550.00 |
| N+ | Dhs. 51.10 | Price Inquiry |
Request Quote / Inquiry

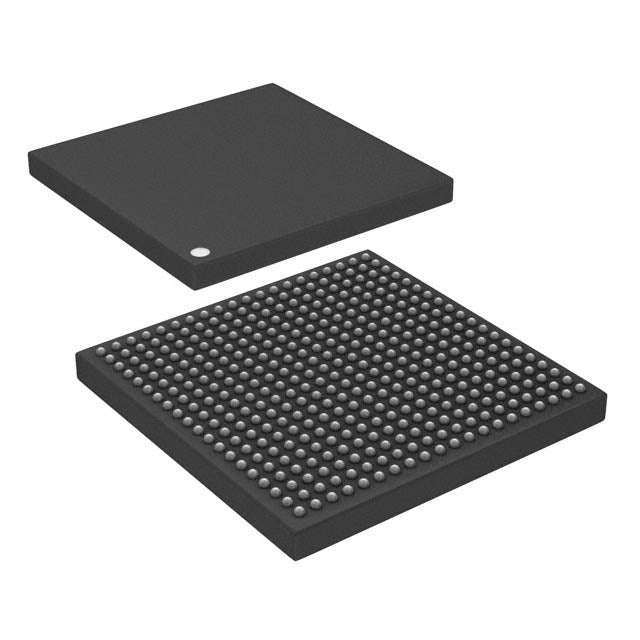

Microchip M2S025-1VFG400 SmartFusion2 SoC FPGA
The M2S025-1VFG400 is a high-performance System-on-Chip (SoC) FPGA from Microchip Technology's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller with 25K logic modules of programmable FPGA fabric. This industrial-grade device delivers robust processing power at 166MHz with integrated 256KB Flash and 64KB RAM, making it ideal for embedded control, communications infrastructure, and mixed-signal applications.
Key Features & Benefits
- Dual-architecture design: ARM Cortex-M3 MCU + 25K logic module FPGA for flexible hardware/software partitioning
- Rich connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, USB, plus high-speed DDR, PCIe, and SERDES interfaces
- Ample on-chip memory: 256KB Flash for firmware, 64KB RAM for data buffering
- Industrial temperature range: 0°C to 85°C (TJ) for reliable operation in harsh environments
- Compact 400-VFBGA package: 17×17mm footprint for space-constrained designs
- Active part status: Long-term availability and RoHS compliance for production confidence
Typical Applications
Automotive control systems, industrial automation, motor drives, communications gateways, aerospace instrumentation, and edge computing nodes requiring deterministic real-time processing with reconfigurable logic.
All specifications are sourced from official Microchip datasheets. For complete electrical characteristics, timing diagrams, and application notes, refer to the manufacturer's documentation.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion®2 |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 256KB |
| RAM Size | 64KB |
| Peripherals | DDR, PCIe, SERDES |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 25K Logic Modules |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 400-LFBGA |
| Supplier Device Package | 400-VFBGA (17x17) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
