Microchip Technology M2S025TS-1FG484I

Microchip M2S025TS-1FG484I SmartFusion2 SoC FPGA

The M2S025TS-1FG484I is a high-performance System-on-Chip (SoC) FPGA from Microchip's SmartFusion2 family, combining an ARM Cortex-M3 microcontroller subsystem with 25,000 logic modules of FPGA fabric. Engineered for industrial, automotive, aerospace, and communications applications requiring both processing power and programmable logic flexibility.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 processor core running at 166MHz paired with 25K logic module FPGA fabric for maximum design flexibility
• Rich Connectivity: Integrated CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces eliminate external components
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES support for demanding data-intensive applications
• Generous Memory: 256KB Flash and 64KB RAM for embedded firmware and data storage
• Industrial Temperature Range: Rated for -40°C to 100°C (TJ) operation in harsh environments

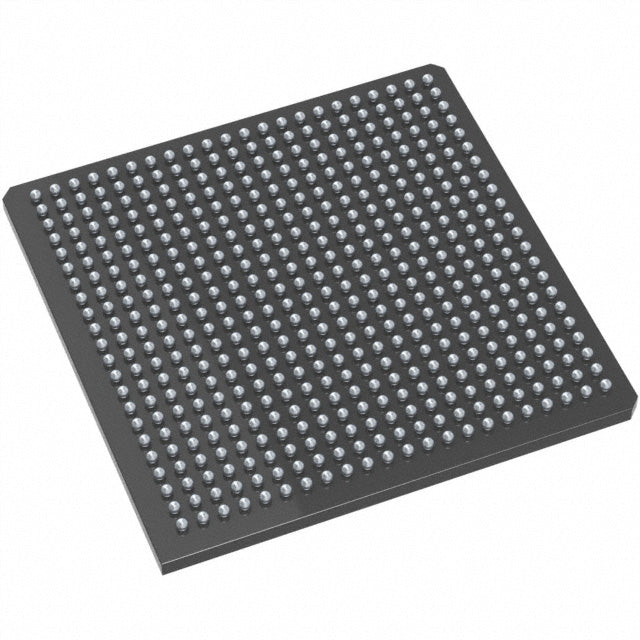

• Compact 484-FBGA Package: 23x23mm footprint optimizes board space while providing extensive I/O

Ideal Applications

Perfect for motor control, industrial automation, embedded vision systems, secure communications, and mixed-signal processing where both deterministic control and reconfigurable logic are essential.

Documentation: Full datasheet and technical resources available. Authentic Microchip components with full traceability and RoHS compliance. Global shipping available for engineering and production quantities.

• M2S025TS-1FG484I.pdf
