Microchip Technology M2S025TS-1VF400I

Microchip M2S025TS-1VF400I SmartFusion2 SoC FPGA

The M2S025TS-1VF400I is a high-performance System-on-Chip (SoC) FPGA from Microchip's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller subsystem with 25K logic module FPGA fabric. This industrial-grade device delivers exceptional integration for embedded applications requiring both processing power and programmable logic.

Key Features

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 25K logic module FPGA fabric
• Memory Resources: 256KB embedded Flash and 64KB SRAM for program and data storage
• Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB interfaces
• High-Speed Peripherals: DDR controller, PCIe, and SERDES for demanding applications
• Industrial Temperature Range: Qualified for -40°C to 100°C (TJ) operation

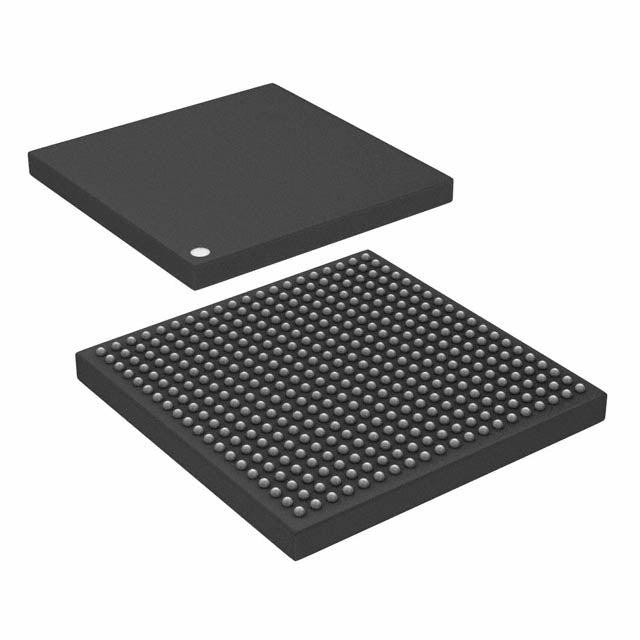

• Compact Package: 400-pin VFBGA (17x17mm) for space-constrained designs

Ideal Applications

Perfect for industrial automation, automotive systems, aerospace instrumentation, communications infrastructure, and embedded vision systems requiring secure, reliable processing with programmable logic flexibility.

Authenticity Guaranteed: All products sourced from authorized distributors with full traceability and RoHS compliance documentation.

• M2S025TS-1VF400I.pdf
