Microchip M2S050-1VF400 SmartFusion2 SoC FPGA

The M2S050-1VF400 is a high-performance System-on-Chip (SoC) FPGA from Microchip Technology's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller with 50,000 logic modules of FPGA fabric. Engineered for industrial, automotive, aerospace, and communications applications requiring programmable logic with embedded processing.

Key Features

• Dual Architecture: ARM Cortex-M3 MCU core integrated with 50K logic module FPGA fabric
• High-Speed Processing: 166MHz clock speed with 256KB Flash and 64KB RAM
• Advanced Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, USB interfaces
• High-Performance Peripherals: DDR memory controller, PCIe, and SERDES support
• Industrial Temperature Range: Qualified for 0°C to 85°C (TJ) operation

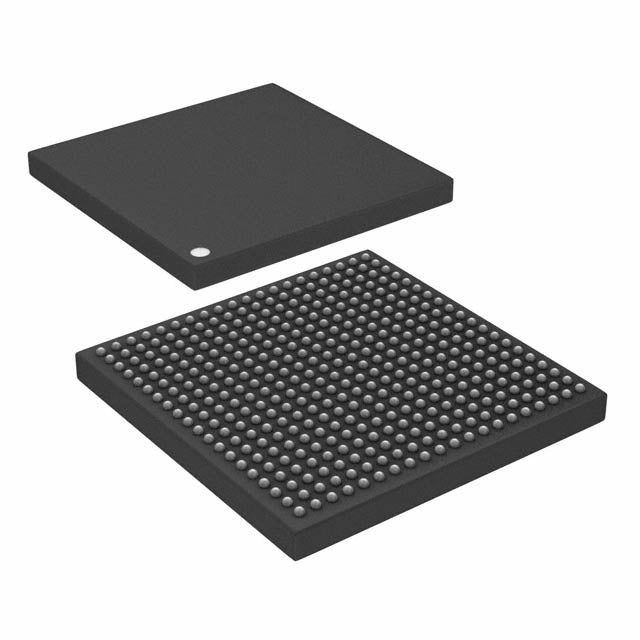

• Compact Package: 400-pin VFBGA (17x17mm) for space-constrained designs

Applications

Ideal for embedded control systems, motor drives, industrial automation, secure communications, edge computing, and mixed-signal processing where both programmable logic and microcontroller functionality are required in a single device.

Authenticity Guaranteed: All products are sourced from authorized distributors with full traceability and documentation. RoHS compliant.

• M2S050-1VF400.pdf
