Microchip Technology M2S050-VF400

M2S050-VF400 SmartFusion2 SoC FPGA Overview

The M2S050-VF400 is a high-performance System-on-Chip (SoC) from Microchip Technology's SmartFusion®2 family, integrating an ARM® Cortex®-M3 microcontroller with a 50,000 logic module FPGA fabric. Operating at 166MHz, this device combines programmable logic flexibility with embedded processing power, making it ideal for industrial automation, communications infrastructure, aerospace systems, and automotive applications.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU + 50K logic FPGA for maximum design flexibility
• Rich Connectivity: Ethernet, CANbus, USB, UART/USART, I2C, SPI interfaces
• High-Speed Interfaces: DDR memory controller, PCIe, SERDES for demanding applications
• Generous Memory: 256KB Flash + 64KB RAM for complex embedded applications
• Industrial Grade: 0°C to 85°C operating temperature range

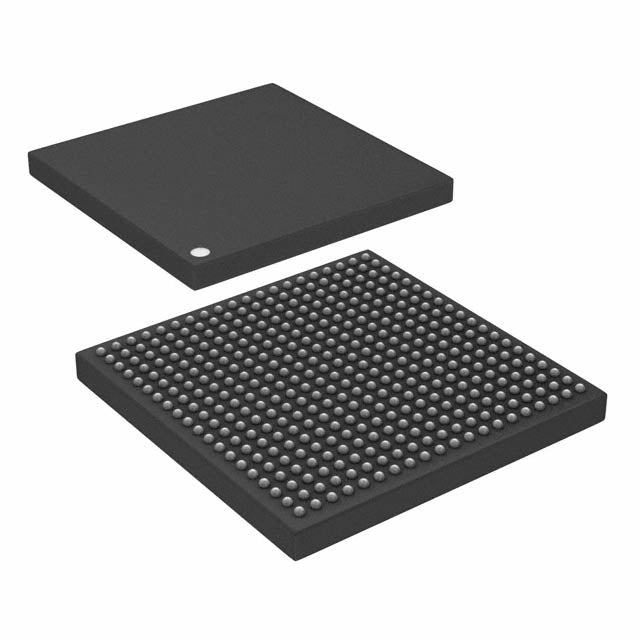

• Compact Package: 400-VFBGA (17x17mm) for space-constrained designs

Applications

This SmartFusion2 SoC is engineered for mission-critical applications requiring both processing power and programmable logic, including industrial control systems, motor drives, communications equipment, avionics, automotive electronics, and secure embedded systems. The combination of ARM processing and FPGA fabric enables hardware acceleration, custom peripherals, and real-time deterministic control.

RoHS Compliant | Active Part Status | Authorized Distributor

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
