Microchip Technology M2S050T-VFG400

M2S050T-VFG400 SmartFusion®2 System-on-Chip (SoC)

The M2S050T-VFG400 from Microchip Technology combines an ARM® Cortex®-M3 microcontroller with 50,000 logic module FPGA fabric, delivering exceptional flexibility for embedded applications requiring both processing power and programmable logic. This SmartFusion®2 device operates at 166MHz and integrates 256KB Flash and 64KB RAM, making it ideal for aerospace, automotive, industrial control, medical devices, and telecommunications systems.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU + 50K logic module FPGA for maximum design flexibility
• High-Speed Connectivity: DDR, PCIe, SERDES interfaces for demanding data transfer requirements
• Rich Peripheral Set: CANbus, Ethernet, I²C, SPI, UART/USART, USB support
• Industrial Temperature Range: 0°C to 85°C (TJ) for reliable operation in harsh environments

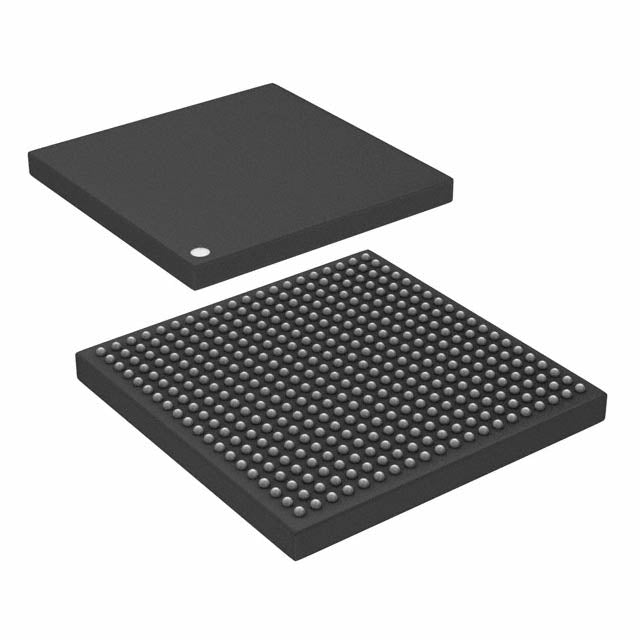

• Compact 400-VFBGA Package: 17x17mm footprint optimizes board space
• RoHS Compliant: Meets environmental standards for global deployment

Typical Applications

This SoC is engineered for applications requiring secure, deterministic processing combined with FPGA configurability: motor control with custom sensor interfaces, industrial automation with real-time protocol handling, medical imaging systems, avionics data acquisition, and secure communication gateways.

Design Resources & Support

Full datasheets, reference designs, application notes, and development tools are available to accelerate your design-in process. Our technical team provides expert guidance for schematic review, firmware integration, and production qualification.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
