Microchip Technology M2S050TS-1FGG896I

Microchip M2S050TS-1FGG896I SmartFusion2 SoC FPGA

The M2S050TS-1FGG896I is a high-performance System-on-Chip (SoC) FPGA from Microchip Technology's SmartFusion2 family, combining an ARM Cortex-M3 microcontroller with 50,000 logic modules of FPGA fabric. This powerful integration delivers exceptional flexibility for embedded applications requiring both processing power and programmable logic.

Key Features

• Dual Architecture: ARM Cortex-M3 MCU core integrated with FPGA fabric for maximum design flexibility
• High Logic Density: 50K logic modules for complex digital designs
• Memory Resources: 256KB Flash and 64KB RAM for program and data storage
• Processing Speed: 166MHz operation for demanding real-time applications
• Rich Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
• Advanced Peripherals: DDR memory controller, PCIe, and SERDES for high-speed communications
• Industrial Grade: Operating temperature range from -40°C to 100°C (TJ)

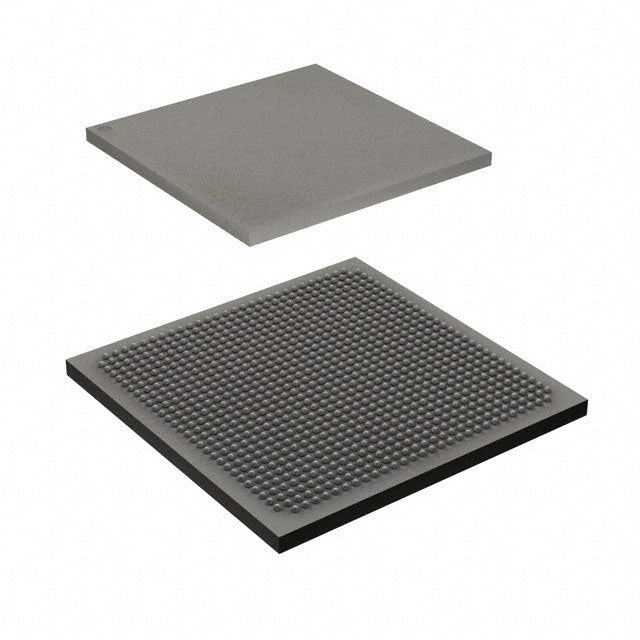

• Compact Package: 896-FBGA (31x31mm) for space-efficient designs

Applications

Ideal for industrial automation, motor control, communications infrastructure, medical devices, aerospace systems, and any application requiring the combination of microcontroller processing with FPGA programmability.

Authenticity Guaranteed: All products are sourced directly from authorized distributors and come with full manufacturer warranty and traceability documentation.

• M2S050TS-1FGG896I.pdf
