Microchip Technology M2S050TS-FGG896

Microchip M2S050TS-FGG896 SmartFusion2 SoC FPGA

The M2S050TS-FGG896 from Microchip Technology is a high-performance SmartFusion®2 System-on-Chip (SoC) FPGA that combines an ARM® Cortex®-M3 microcontroller subsystem with 50,000 logic modules of FPGA fabric. This powerful integration delivers exceptional flexibility for embedded applications requiring both deterministic real-time processing and reconfigurable logic.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 50K logic module FPGA fabric
• Rich Connectivity: Integrated CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES for demanding applications
• Generous Memory: 256KB embedded Flash and 64KB RAM for program and data storage
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (junction temperature)

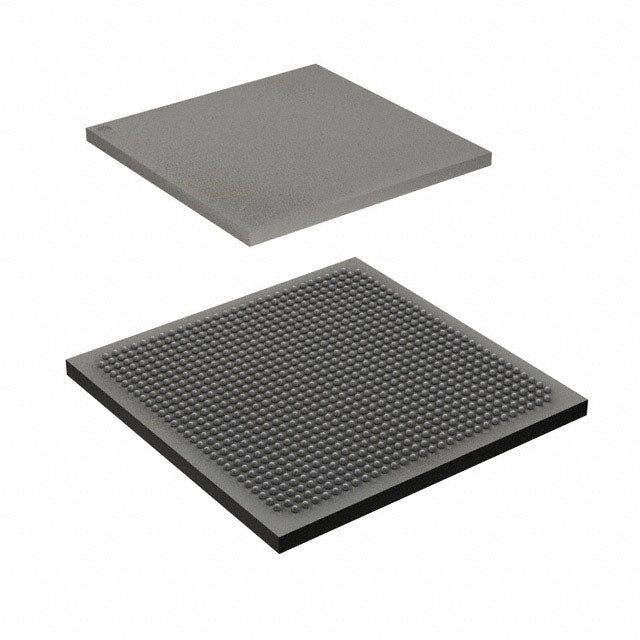

• Fine-Pitch BGA Package: 896-FBGA (31x31mm) for high-density board designs
• RoHS Compliant: Meets environmental standards for global distribution

Ideal Applications

Perfect for aerospace, automotive, industrial automation, medical devices, and telecommunications systems requiring secure, low-power processing with FPGA acceleration. The SmartFusion2 architecture enables design-in flexibility for motor control, sensor fusion, protocol bridging, and edge computing applications.

Design Support & Documentation

Full datasheets, reference designs, application notes, and development tools are available to accelerate your design-in process. Our technical team provides expert support for schematic review, BOM optimization, and lifecycle planning.

Quality & Traceability

All units ship with full traceability documentation and comply with RoHS/REACH regulations. Bulk packaging options available for production volumes. Contact us for lead times, pricing tiers, and custom tape-and-reel configurations.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
