Microchip Technology M2S060T-FGG676

M2S060T-FGG676 SmartFusion2 SoC FPGA Overview

The M2S060T-FGG676 from Microchip Technology is a high-performance SmartFusion®2 System-on-Chip (SoC) FPGA that integrates an ARM® Cortex®-M3 microcontroller core with 60,000 logic modules. This advanced device combines the flexibility of FPGA fabric with the deterministic processing of an embedded microcontroller, making it ideal for aerospace, industrial automation, medical devices, and secure communications applications.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU + 60K logic module FPGA for maximum design flexibility
• High-Speed Processing: 166MHz operation for demanding real-time applications
• Generous Memory: 256KB Flash and 64KB RAM for complex firmware and data buffering
• Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, USB, PCIe, and SERDES interfaces
• DDR Support: External memory interface for data-intensive applications
• Industrial Temperature Range: 0°C to 85°C (TJ) for reliable operation in harsh environments

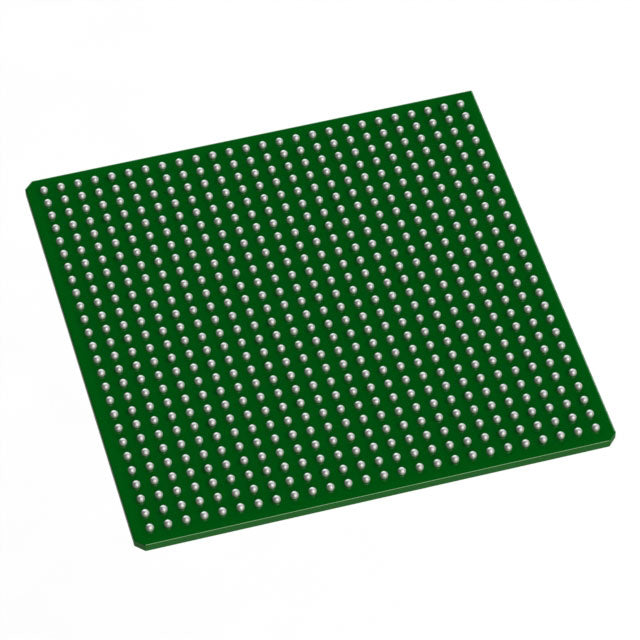

• Compact 676-FBGA Package: 27x27mm footprint for space-constrained designs
• RoHS Compliant: Meets environmental and regulatory standards

Typical Applications

This SoC FPGA is engineered for applications requiring secure processing, custom I/O interfaces, and deterministic control, including motor control systems, industrial IoT gateways, secure edge computing, medical imaging equipment, and avionics instrumentation.

Design-In Support

Full datasheets, reference designs, development tools, and technical support available. Contact our engineering team for design consultation, sample requests, and volume pricing.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
