M2S060T-VFG400 SmartFusion2 SoC FPGA Overview

The M2S060T-VFG400 from Microchip Technology is a high-performance SmartFusion®2 System-on-Chip (SoC) FPGA that combines an ARM® Cortex®-M3 microcontroller with 60,000 logic modules of FPGA fabric. This powerful hybrid architecture delivers exceptional flexibility for embedded applications requiring both processing power and programmable logic.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 60K logic module FPGA
• Rich Connectivity: Integrated CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES for demanding applications
• Generous Memory: 256KB Flash and 64KB RAM for application code and data
• Industrial Grade: Operating temperature range 0°C to 85°C (TJ)

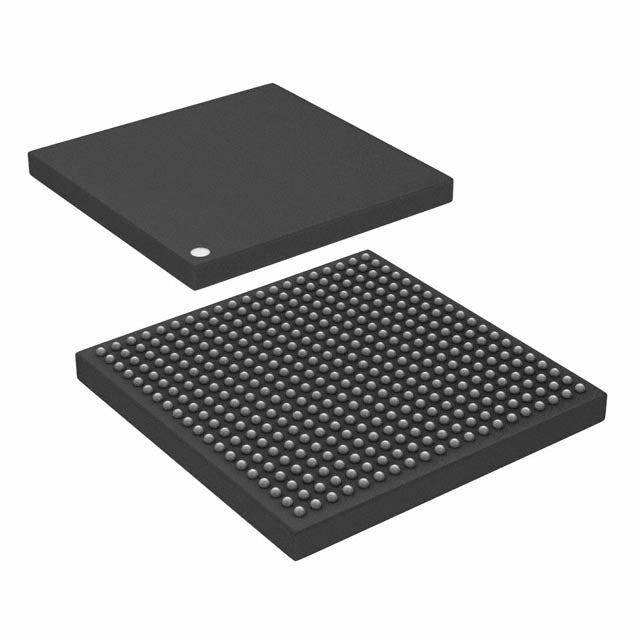

• Compact Package: 400-pin VFBGA (17x17mm) for space-constrained designs

Ideal Applications

Perfect for industrial automation, motor control, communications infrastructure, medical devices, and aerospace systems requiring secure, reliable processing with customizable logic.

Authenticity Guaranteed: All components are sourced directly from authorized distributors. We provide genuine Microchip parts with full traceability and fast worldwide shipping.
