Microchip Technology M2S090-1FG676I

Microchip M2S090-1FG676I SmartFusion2 SoC FPGA

The M2S090-1FG676I is a high-performance System-on-Chip (SoC) FPGA from Microchip Technology's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller with 90,000 logic modules of FPGA fabric. This industrial-grade device delivers exceptional flexibility for mission-critical applications in aerospace, automotive, industrial automation, medical equipment, and telecommunications.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 90K logic module FPGA fabric for maximum design flexibility
• Rich Connectivity: Integrated CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces eliminate external components
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES support for bandwidth-intensive applications
• Generous Memory: 512KB Flash and 64KB RAM for complex embedded applications
• Industrial Temperature Range: Qualified for -40°C to 100°C (TJ) operation in harsh environments

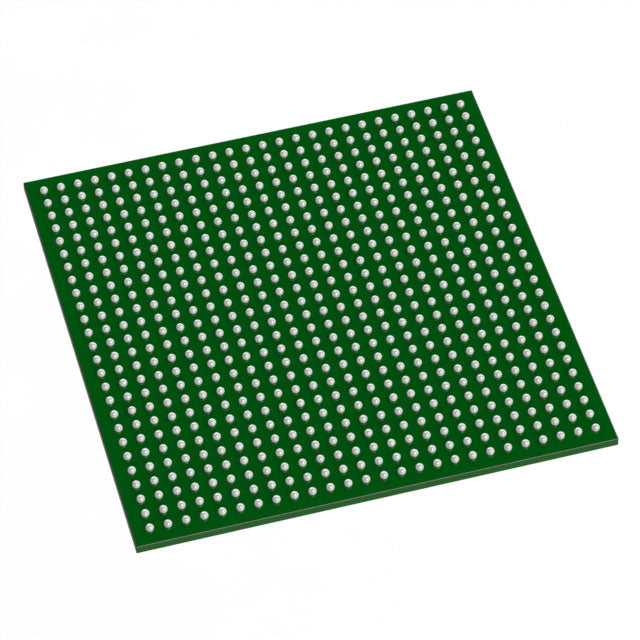

• Compact Package: 676-pin FBGA (27x27mm) for space-constrained designs
• Active Production Status: Long lifecycle availability for critical designs requiring extended support

Ideal Applications

Perfect for aerospace flight control systems, automotive ADAS and powertrain controllers, industrial motor drives and PLCs, medical imaging and diagnostic equipment, and telecom infrastructure requiring deterministic real-time processing with reconfigurable logic.

Authorized Distributor: We provide genuine Microchip components with full traceability, RoHS/REACH compliance documentation, and long lifecycle support for your critical designs.

• M2S090-1FG676I.pdf
