Microchip M2S090T-1FG484 SmartFusion2 SoC FPGA Overview

The M2S090T-1FG484 from Microchip Technology is a high-performance System-on-Chip (SoC) that integrates an ARM® Cortex®-M3 microcontroller with a 90,000 logic module FPGA fabric. This SmartFusion®2 device delivers exceptional flexibility for embedded applications requiring both programmable logic and processing power.

Key Features & Specifications

• Hybrid Architecture: ARM Cortex-M3 MCU core running at 166MHz combined with 90K logic element FPGA
• Memory: 512KB embedded Flash and 64KB SRAM for program and data storage
• High-Speed Interfaces: DDR controller, PCIe, and SERDES for demanding connectivity requirements
• Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB peripherals

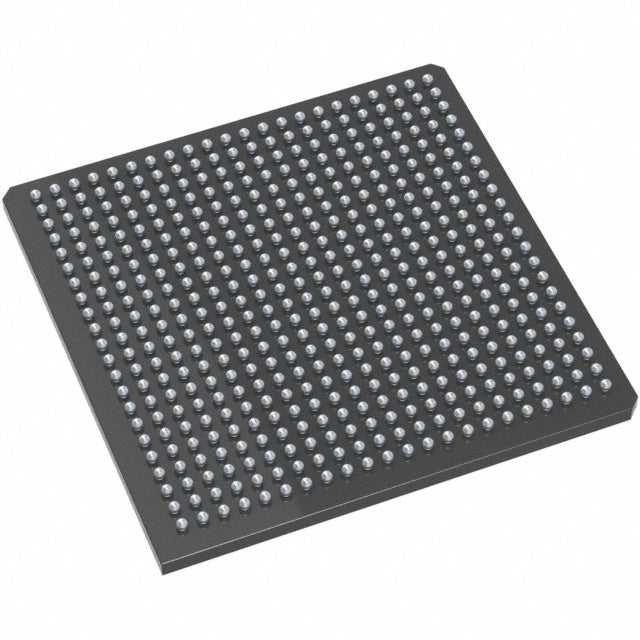

• Package: 484-pin Fine-Pitch BGA (23mm × 23mm) for compact board designs
• Operating Range: Commercial temperature grade (0°C to 85°C junction temperature)
• Status: Active production with tray packaging

Ideal Applications

Perfect for industrial automation, motor control, communications infrastructure, automotive systems, and aerospace applications requiring secure, deterministic processing with reconfigurable logic.

All specifications are subject to manufacturer documentation. Please refer to the official Microchip datasheet for complete electrical characteristics and design guidelines.

• M2S090T-1FG484.pdf
