Microchip Technology M2S090T-1FGG676

M2S090T-1FGG676 - SmartFusion®2 SoC FPGA with ARM® Cortex®-M3

The M2S090T-1FGG676 from Microchip Technology is a high-performance System-on-Chip (SoC) FPGA combining an ARM® Cortex®-M3 microcontroller with 90,000 logic modules. This SmartFusion®2 device delivers exceptional processing power at 166MHz, making it ideal for mission-critical applications in aerospace, industrial automation, medical devices, and telecommunications.

Key Features & Benefits

• Dual Architecture: ARM® Cortex®-M3 MCU integrated with 90K logic module FPGA for maximum flexibility
• Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB interfaces for versatile system integration
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES for demanding data-intensive applications
• Generous Memory: 512KB Flash and 64KB RAM for complex embedded applications
• Industrial Temperature Range: 0°C to 85°C (TJ) operation for reliable performance in harsh environments

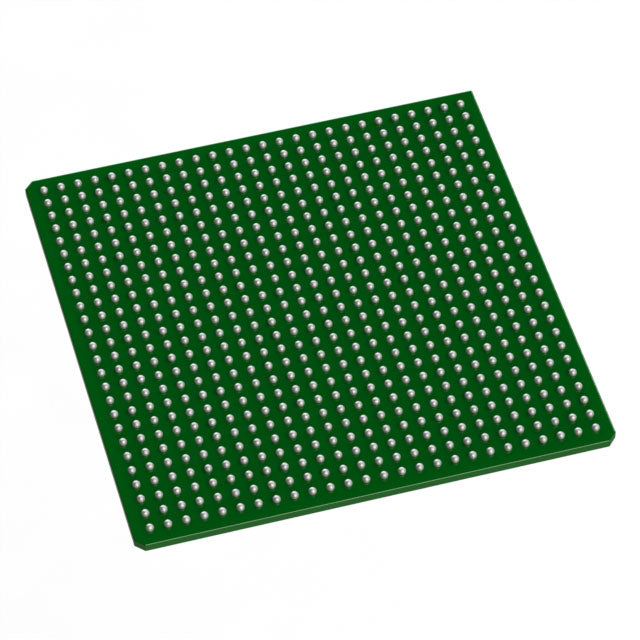

• Compact 676-FBGA Package: 27x27mm footprint optimizes board space
• RoHS Compliant: Meets environmental standards for global deployment

Ideal Applications

This SoC FPGA is engineered for applications requiring both programmable logic and embedded processing, including industrial control systems, motor drives, medical imaging equipment, aerospace avionics, secure communications, and high-reliability data acquisition systems.

Why Choose HQICKEY as Your Authorized Distributor

As an authorized distributor, we guarantee 100% authentic Microchip components with full traceability documentation. Every M2S090T-1FGG676 ships with compliance certificates and is backed by our commitment to long lifecycle availability for your critical designs. We support design engineers and procurement teams with technical expertise and reliable supply chain management.

• M2S090T-1FGG676.pdf
