Microchip Technology M2S090T-FGG676

M2S090T-FGG676 SmartFusion2 SoC FPGA Overview

The M2S090T-FGG676 from Microchip Technology combines an ARM® Cortex®-M3 microcontroller with 90,000 logic module FPGA fabric, delivering exceptional processing power and programmable logic in a single chip. This SmartFusion®2 SoC is engineered for mission-critical applications in aerospace, automotive, industrial control, medical devices, and telecommunications.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU + 90K logic module FPGA for maximum flexibility
• High Performance: 166MHz processing speed with 512KB Flash and 64KB RAM
• Advanced Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, USB interfaces
• High-Speed Peripherals: DDR, PCIe, and SERDES support for demanding applications
• Industrial Grade: 0°C to 85°C operating temperature range

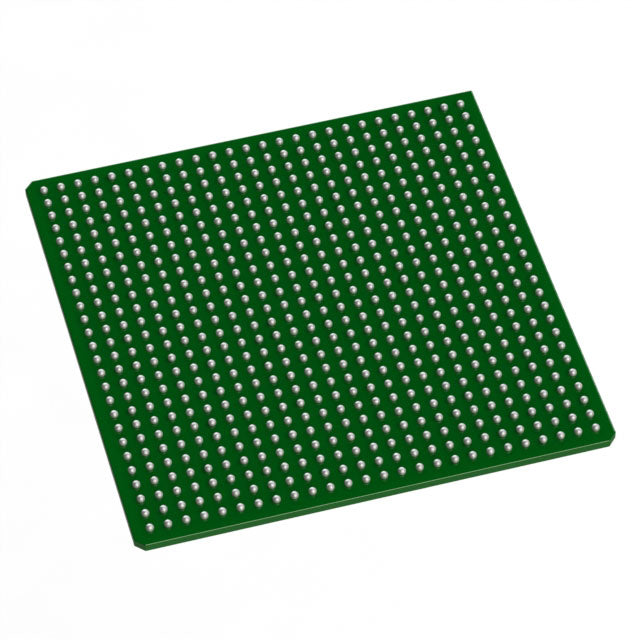

• Compact Package: 676-FBGA (27x27mm) for space-constrained designs
• RoHS Compliant: Environmentally friendly and regulation-ready

Ideal Applications

Perfect for aerospace flight control systems, automotive ADAS and powertrain management, industrial automation and motor control, medical imaging equipment, and telecommunications infrastructure where reliability, performance, and long lifecycle support are essential.

• M2S090T-FGG676.pdf
