Microchip Technology M2S090TS-FCS325I
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 772.44 | Dhs. 772.44 |
| 15+ | Dhs. 748.03 | Dhs. 11,220.45 |
| 25+ | Dhs. 731.77 | Dhs. 18,294.25 |
| 50+ | Dhs. 691.12 | Dhs. 34,556.00 |
| 100+ | Dhs. 609.81 | Dhs. 60,981.00 |
| N+ | Dhs. 121.96 | Price Inquiry |
Request Quote / Inquiry
M2S090TS-FCS325I SmartFusion2 SoC FPGA - Industrial-Grade Programmable System-on-Chip
The M2S090TS-FCS325I from Microchip Technology combines the deterministic real-time control of an ARM Cortex-M3 microcontroller with the flexibility of 90,000 logic modules of FPGA fabric in a single, power-efficient System-on-Chip. Engineered for mission-critical applications in automotive, aerospace, industrial automation, and secure communications, this SmartFusion2 device delivers robust performance across the full industrial temperature range.
Core Capabilities
- Dual-Core Architecture: ARM Cortex-M3 processor running at 166MHz paired with 90K logic module FPGA fabric for parallel processing and custom hardware acceleration
- Embedded Memory: 512KB Flash memory for application code and 64KB RAM for data storage and buffering
- High-Performance Interfaces: Integrated DDR memory controller, PCIe endpoint, and SERDES for bandwidth-intensive data transfer
- Comprehensive Connectivity: CANbus for automotive/industrial networks, Ethernet MAC, I²C, SPI, UART/USART, and USB 2.0 OTG
- Industrial Temperature Range: Qualified for -40°C to 100°C junction temperature operation in harsh environments

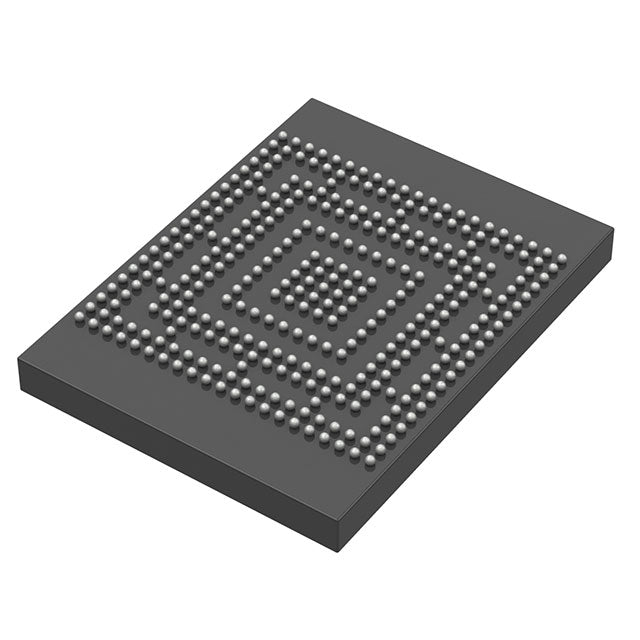

- Space-Efficient Package: 325-pin Fine-Pitch BGA (FCBGA) measuring just 11mm × 13.5mm
Target Applications
The M2S090TS-FCS325I excels in applications requiring both deterministic control and flexible logic:
- Motor control and drive systems with custom PWM and encoder interfaces
- Industrial Ethernet gateways and protocol converters
- Secure communications with hardware-accelerated encryption
- Multi-sensor fusion and signal processing
- Mixed-signal data acquisition with custom analog front-ends
- Automotive body control modules and ADAS subsystems
Development Ecosystem
Supported by Microchip's Libero SoC design suite for FPGA development and SoftConsole IDE for ARM firmware development. Includes reference designs, IP cores, and comprehensive documentation to accelerate time-to-market.
Authenticity & Compliance: All M2S090TS-FCS325I devices are sourced from authorized Microchip distributors with full supply chain traceability. RoHS compliant with complete documentation and certificates of conformance available upon request.
Stock & Delivery: In-stock units ship same-day or next business day. Volume pricing and custom tape-and-reel packaging available for production orders.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion®2 |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 512KB |
| RAM Size | 64KB |
| Peripherals | DDR, PCIe, SERDES |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 90K Logic Modules |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 325-TFBGA, FCBGA |
| Supplier Device Package | 325-FCBGA (11x13.5) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
