Microchip Technology M2S150T-FCSG536I

Microchip M2S150T-FCSG536I SmartFusion2 SoC FPGA

The M2S150T-FCSG536I is a high-performance System-on-Chip (SoC) FPGA from Microchip Technology's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller with 150K logic modules of programmable FPGA fabric. This industrial-grade device delivers exceptional integration for embedded systems requiring both deterministic processing power and reconfigurable logic in a single, secure package.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 150K logic module FPGA fabric for maximum flexibility
• Rich Connectivity: Integrated CANbus, Ethernet, I²C, SPI, UART/USART, and USB interfaces eliminate external components
• High-Speed Peripherals: DDR memory controller, PCIe, and SERDES for demanding data-intensive applications
• Generous On-Chip Memory: 512KB Flash and 64KB RAM for application code, data buffering, and configuration storage
• Industrial Temperature Range: Operates reliably from -40°C to 100°C (TJ) for harsh environments

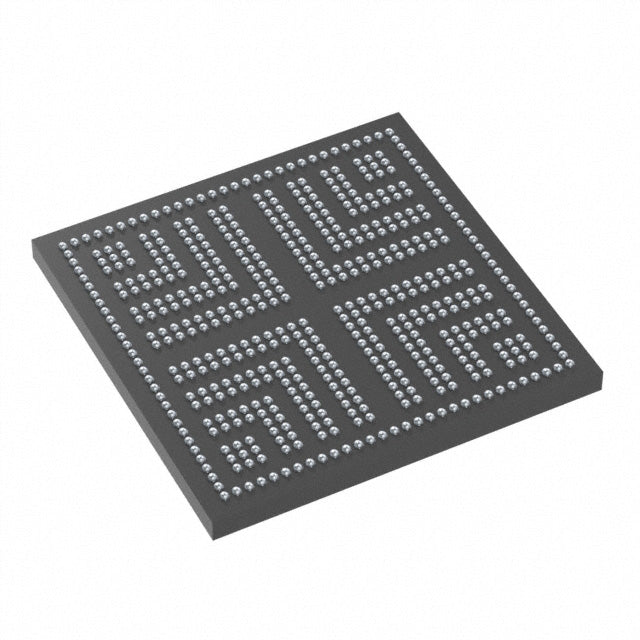

• Compact Package: 536-pin CSPBGA (16x16mm) for space-constrained designs without sacrificing I/O density
• RoHS Compliant: Meets global environmental standards for worldwide deployment
• Active Status: Long-term availability guaranteed with full manufacturer support and documentation

Ideal Applications

Perfect for industrial automation, automotive systems, aerospace electronics, communications infrastructure, and embedded control applications requiring both deterministic processing and flexible FPGA logic. The SmartFusion2 architecture enables secure, low-power designs with advanced connectivity and real-time performance.

Why Choose SmartFusion2?

SmartFusion2 SoC FPGAs integrate a hardened ARM Cortex-M3 processor subsystem with FPGA fabric, delivering lower power consumption, reduced BOM costs, and enhanced security compared to discrete MCU + FPGA solutions. The M2S150T variant provides the optimal balance of logic resources and processing capability for mid-range embedded applications.

Documentation & Support

Authenticity Guaranteed: All products are sourced from authorized distributors with full traceability and manufacturer documentation. Long-term availability, engineering support, and technical resources included with every purchase.

Applications Engineering: Our team provides design consultation, reference designs, and integration support to accelerate your time-to-market.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
