Renesas Electronics Corporation M30620FCPFP#U9C
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M16C/60/62P |
| Packaging | | Tray |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 85 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |

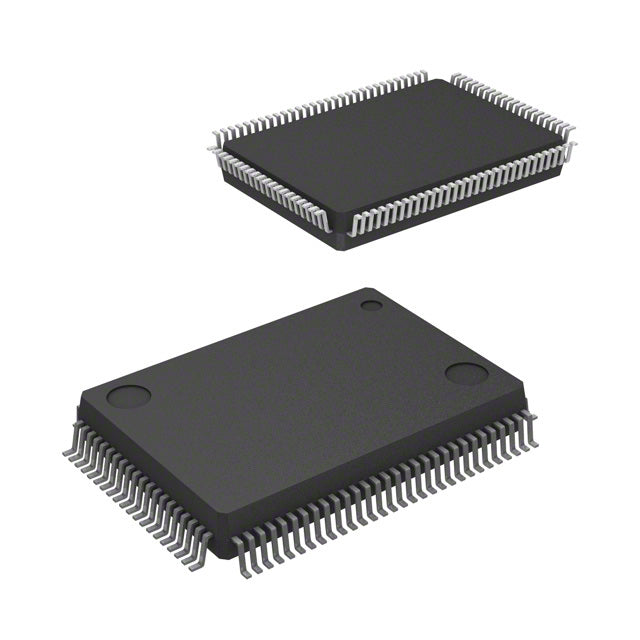

The Renesas M30620FCPFP#U9C is a 16-bit microcontroller based on the M16C/60 core, operating at up to 24MHz. It provides 128KB of flash memory and 10KB of RAM, with a supply voltage range of 2.7V to 5.5V. Housed in a 100-BQFP package, it includes DMA and WDT for efficient embedded control.
- Low voltage operation (2.7V): Ideal for battery-powered applications.
- 24MHz M16C/60 core: Balanced performance for control tasks.
- 128KB flash: Adequate for mid-range firmware.
- Compact 100-BQFP: Saves PCB space in dense designs.
Automotive Body Electronics
Wide voltage range and WDT ensure reliable operation in window lift and mirror control modules.
Home Appliances
24MHz speed and DMA handle sensor processing in washing machines and microwaves.
Battery-Powered Devices
Low 2.7V operation extends battery life in portable instruments.
Industrial Sensors
Compact 100-BQFP package fits space-constrained transmitter and receiver modules.
Office Equipment
DMA and 128KB flash support printer and copier control logic.
HVAC Controllers
Robust I/O and WDT provide dependable thermostat and fan control.
- Q: What is the core processor?
- A: M16C/60.
- Q: What is the maximum speed?
- A: 24MHz.
- Q: How much flash memory is included?
- A: 128KB.
- Q: What is the supply voltage range?
- A: 2.7V to 5.5V.
- Q: What package is this?
- A: 100-BQFP.
Base Product Number ：
M30620FCPFP
M30620FCPFP#U9C.pdf
