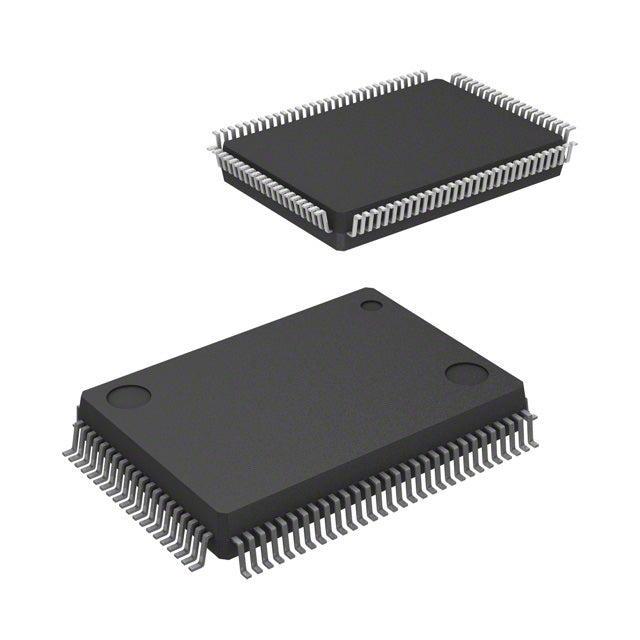

Renesas Electronics Corporation M30620SPFP#U3C
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M16C/60/62P |
| Packaging | | Tray |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 50 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |
The Renesas M30620SPFP is a 16-bit microcontroller with a 24MHz M16C/60 core and 10KB RAM. It operates at 2.7V-5.5V and includes DMA and WDT. The 100-BQFP package provides extensive I/O for complex industrial and automotive systems.
- 24MHz core for faster processing.
- 100-BQFP offers more I/O pins.
- DMA enhances data throughput.
- Wide voltage range for versatile applications.
High-End Industrial Control
24MHz speed and 100-pin package enable complex PLC systems.
Automotive Engine Control
Wide voltage range and WDT support harsh environments.
Robotics
DMA and 10KB RAM handle multi-axis control algorithms.
Telecom Infrastructure
100-BQFP allows extensive I/O for base station monitoring.
Medical Imaging
High-speed processing for ultrasound front-end control.
Avionics
Reliable operation with WDT in flight instrumentation.
- Q: What is the core speed?
- A: 24MHz M16C/60 core.
- Q: What is the RAM size?
- A: 10KB x 8 RAM.
- Q: What is the package?
- A: 100-BQFP package.
- Q: What peripherals are available?
- A: DMA and WDT, with 2.7V-5.5V supply.
Base Product Number ：
M30620SPFP
M30620SPFP#U3C.pdf
