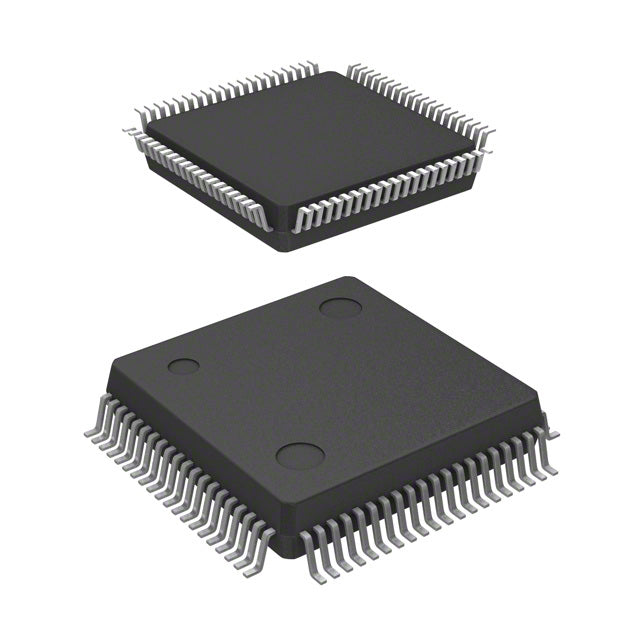

Renesas Electronics Corporation M30621FCPGP#U5C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M16C/60/62P |
| Packaging | | Tray |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 68 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-QFP (14x14) |
| Package / Case | 80-BQFP |
| ROHS |  |
The Renesas M30621FCPGP is a 16-bit microcontroller built on the M16C/60 core. It offers 128KB of flash memory and 10K bytes of RAM, running at 24 MHz. Housed in an 80-BQFP package, it operates from 2.7V to 5.5V and includes DMA and watchdog timer peripherals, making it suitable for industrial control and embedded systems requiring reliable data handling.
- Efficient DMA: Reduces CPU load for high-throughput data movement.
- Large Flash: 128KB accommodates complex application code.
- Flexible Voltage: 2.7V-5.5V supports both 3.3V and 5V logic.
- Compact 80-BQFP: Saves PCB space while offering sufficient I/O.
Motor Control Drives
The 24MHz M16C core with DMA enables efficient PWM generation and sensor feedback for brushless DC motor drives.
Industrial Automation Sensors
With 10K RAM and 128KB flash, it processes multi-channel analog signals in proximity sensors and flow meters.
Power Management Units
Its 2.7V-5.5V supply range allows direct battery monitoring and DC-DC converter control in telecom power supplies.
Printer Controllers
The 80-BQFP package provides enough I/O for stepper motor sequencing and printhead timing in office printers.
HVAC Zone Controllers
DMA channels offload temperature sensor polling, freeing CPU for PID algorithms in commercial HVAC systems.
Portable Instrumentation
Low-power modes and wide voltage range support battery-operated data loggers in field testing.
- Q: What core does the M30621FCPGP use?
- A: It uses the Renesas M16C/60 16-bit CISC core.
- Q: What is the maximum clock speed?
- A: It operates at up to 24 MHz.
- Q: How much flash memory is available?
- A: It has 128KB of program flash.
- Q: What is the operating temperature range?
- A: It is rated for -20°C to 85°C.
- Q: Does it support DMA?
- A: Yes, it includes a DMA controller for peripheral data transfer.
