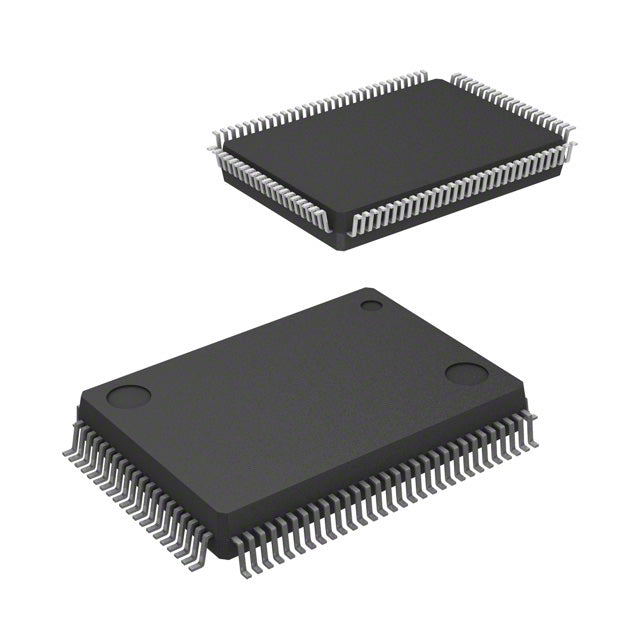

Renesas Electronics Corporation M30622SPFP#U5C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M16C/60/62P |
| Packaging | | Tray |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 50 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |
The Renesas M30622SPFP#U5C is a 16-bit microcontroller built on the M16C/60 core, operating at up to 24MHz. It provides 4K x 8 of RAM and includes a DMA controller and watchdog timer for reliable embedded control. Housed in a 100-BQFP package, it supports a wide supply voltage range of 2.7V to 5.5V and operates from -20°C to 85°C, making it suitable for diverse industrial and consumer applications.
- Efficient Data Handling: The integrated DMA controller moves data without CPU intervention, freeing processing power for critical tasks.
- Wide Voltage Flexibility: Supports 2.7V to 5.5V, allowing direct connection to both 3.3V and 5V logic systems.
- Reliable Operation: The built-in watchdog timer (WDT) resets the system in case of software faults, enhancing field reliability.
- Compact Integration: The 100-BQFP package offers a good balance of I/O count and board space for mid-complexity designs.
Industrial Automation Controllers
The 24MHz M16C/60 core with DMA enables efficient handling of multiple sensor inputs and actuator outputs in PLCs and industrial robots, ensuring deterministic response times.
Building Management Systems
With a 2.7V-5.5V supply range, this MCU can be directly powered from standard 3.3V or 5V rails in HVAC controllers, simplifying power supply design and improving system reliability.
Portable Medical Devices
The low-voltage operation (down to 2.7V) supports battery-powered diagnostic tools, while the WDT ensures safe operation in critical health monitoring applications.
Automotive Body Electronics
Operating from -20°C to 85°C, it suits interior automotive modules like window lift controllers or seat adjustment units, where DMA offloads the CPU for faster response.
Smart Metering Infrastructure
The 100-BQFP package provides ample I/O for multi-phase energy metering, while the DMA controller handles communication protocols without CPU intervention, reducing power consumption.
Point-of-Sale Terminals
Its robust I/O and 24MHz processing speed support secure transaction handling and peripheral management in POS systems, ensuring smooth user interaction.
- Q: What is the operating voltage range of the M30622SPFP#U5C?
- A: The supply voltage range is 2.7V to 5.5V.
- Q: What core processor does this MCU use?
- A: It uses the Renesas M16C/60 core.
- Q: What is the maximum clock speed?
- A: The maximum speed is 24MHz.
- Q: What package is available?
- A: It comes in a 100-BQFP package.
- Q: What are the key integrated features?
- A: It includes DMA and WDT.
