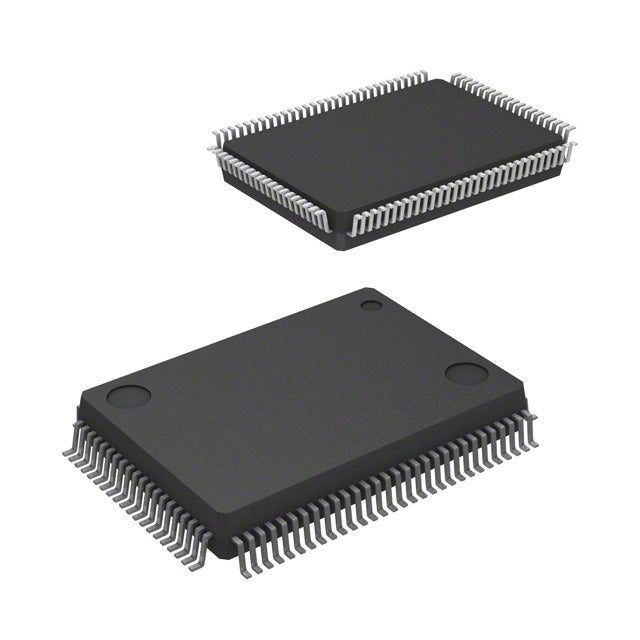

Renesas Electronics Corporation M30626FJPFP#U5C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M16C/60/62P |
| Packaging | | Tray |
| Core Processor | M16C/60 |
| Core Size | 16-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 85 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 31K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |
The Renesas M30626FJPFP is a high-performance 16-bit microcontroller with the M16C/60 core. It offers 512KB of flash and 31K bytes of RAM, operating at 24 MHz. In a 100-BQFP package, it runs from 2.7V to 5.5V and includes DMA and watchdog timer, designed for demanding applications in industrial automation, robotics, and medical electronics.
- Maximum Memory: 512KB flash for the most complex firmware.
- Large RAM: 31K bytes for extensive real-time data.
- High-Speed Core: 24MHz M16C/60 for fast processing.
- Versatile I/O: 100-pin BQFP with DMA support.
High-End Motor Control
512KB flash supports advanced servo algorithms with 31K RAM for multi-axis coordination in CNC machines.
Industrial IoT Gateways
Large memory handles protocol stacks (Modbus, Ethernet) and data logging in edge computing devices.
Medical Diagnostic Systems
Fast 24MHz core and ample RAM process real-time patient data in blood analyzers and ventilators.
Smart Grid Substation Controllers
With 512KB flash, it runs complex protection and communication routines for power distribution.
Robotics Controllers
31K RAM enables simultaneous processing of vision, kinematics, and motion control in collaborative robots.
Avionics Test Equipment
Reliable operation and large memory support flight data acquisition and analysis systems.
- Q: What is the maximum flash memory size?
- A: It has 512KB of program flash.
- Q: What is the RAM capacity?
- A: It includes 31K bytes of RAM.
- Q: What package is this MCU in?
- A: It comes in a 100-pin BQFP package.
- Q: What is the operating temperature range?
- A: It operates from -20°C to 85°C.
- Q: Does it have DMA?
- A: Yes, it includes a DMA controller.
