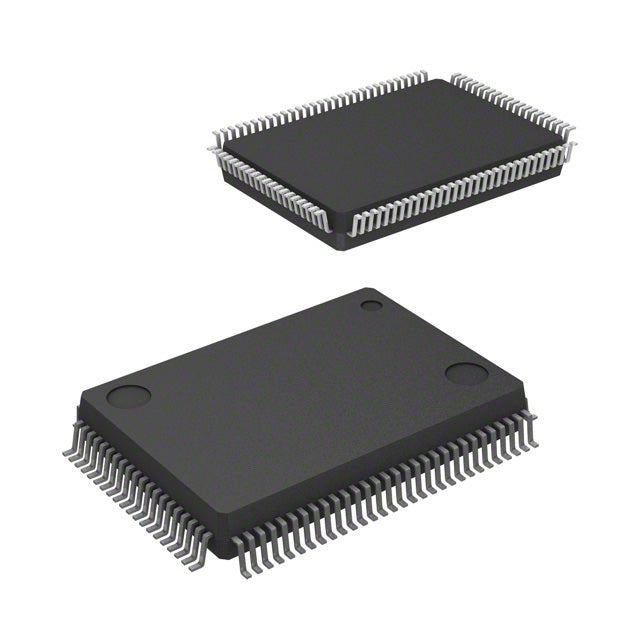

Renesas Electronics Corporation M30843FHFP#U3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M32C/80/84 |
| Packaging | | Tray |
| Core Processor | M32C/80 |
| Core Size | 16/32-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 85 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |
The Renesas M30843FHFP#U3 is a 32-bit microcontroller featuring the M32C/80 core at 32MHz. It offers 384KB flash and 24K RAM, with integrated DMA, PWM, and WDT. Designed for 3V to 5.5V operation, it delivers high performance for industrial and automotive control systems.
- 32-bit M32C/80 core: Higher throughput for complex algorithms compared to 16-bit MCUs.
- Integrated PWM and DMA: Enables efficient motor control and data streaming.
- 384KB flash: Ample space for application code and data logging.
- Industrial temperature range: Reliable operation from -40°C to 85°C.
Motor Control Drives
32MHz M32C/80 core with PWM and DMA enables precise FOC control for AC and BLDC motors.
Industrial Automation
384KB flash supports complex protocol stacks (EtherCAT, Profibus) for factory controllers.
Power Conversion
3V-5.5V range and PWM allow efficient control of inverters and DC-DC converters.
Medical Equipment
High-speed processing and DMA handle real-time patient data acquisition in infusion pumps.
Transportation Systems
Wide temperature range and robust peripherals suit railway signaling and ticketing systems.
Smart Grid Devices
24K RAM and PWM support metering and power quality monitoring applications.
- Q: What core does the M30843FHFP#U3 use?
- A: It uses the 32-bit M32C/80 core running at 32MHz.
- Q: What is the program memory size?
- A: It has 384KB of flash memory (384K x 8).
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, suitable for industrial environments.
- Q: Does it support PWM output?
- A: Yes, it includes PWM, DMA, and WDT peripherals.
