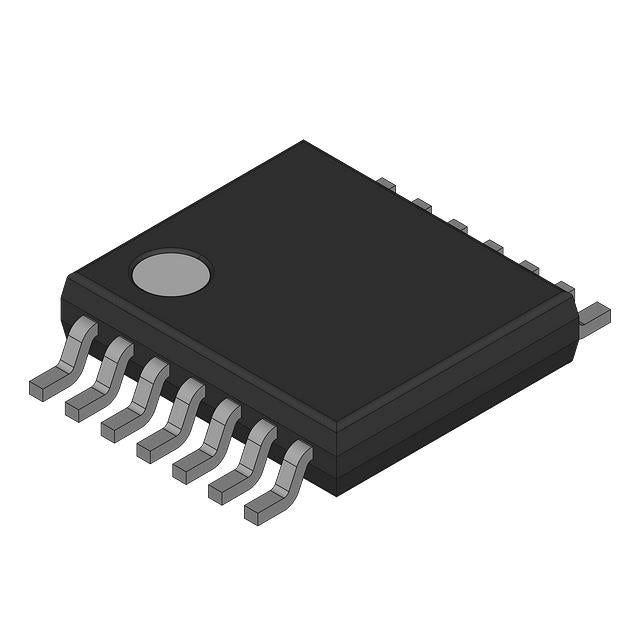

Analog Devices Inc./Maxim Integrated MAX1069ACUD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $64.76 | $64.76 |
| 15+ | $14.89 | $223.35 |
| 25+ | $14.57 | $364.25 |
| 50+ | $13.76 | $688.00 |
| 100+ | $12.14 | $1,214.00 |
| N+ | $2.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 58.6k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
The MAX1069ACUD from Analog Devices is a 14-bit, single-channel analog-to-digital converter featuring a sample-and-hold circuit. It offers a sampling rate of 58.6k SPS and communicates via a standard I2C interface, simplifying system integration. With both external and internal reference options, it provides design flexibility. Its compact 14-TSSOP package and wide temperature range make it suitable for a variety of industrial, medical, and portable applications.
- I2C Interface: Uses a simple two-wire interface, saving GPIO pins on microcontrollers and simplifying PCB layout.
- Flexible Reference: Supports both external and internal references, allowing the user to optimize for accuracy or component count.
- Compact Package: The 14-TSSOP package is ideal for space-constrained designs.
- Good Resolution (14-bit): Offers a solid balance of precision and speed for many embedded applications.
Portable Instrumentation
The I2C interface and small TSSOP package make the MAX1069ACUD ideal for portable devices like handheld multimeters and data loggers.
Sensor Signal Conditioning
With a 58.6k SPS sampling rate, it can accurately digitize signals from temperature, pressure, and light sensors in industrial control systems.
Battery Management Systems
In battery monitoring, this ADC can measure individual cell voltages with 14-bit precision, helping to ensure safe and efficient operation.
Medical Devices
For applications like glucose monitors or pulse oximeters, the low power consumption and I2C interface are advantageous for compact, battery-powered designs.
Audio Processing
The 58.6k SPS rate is sufficient for digitizing audio signals in voice recorders or simple audio analysis tools.
Environmental Monitoring
It can be used in weather stations or air quality monitors to digitize analog outputs from various environmental sensors.
- Q: What type of ADC is the MAX1069ACUD?
- A: It is a 14-bit, single-channel analog-to-digital converter with a sample-and-hold (S/H) architecture.
- Q: What is the resolution of this ADC?
- A: The MAX1069ACUD offers a resolution of 14 bits, providing a good balance between precision and cost.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 58.6k SPS, making it suitable for moderate-speed data acquisition.
- Q: How many channels does it have?
- A: This device has 1 input channel.
- Q: What digital interface does it use?
- A: It communicates via the I2C (Inter-Integrated Circuit) interface, which is a simple two-wire bus.
- Q: What is the package type?
- A: It comes in a compact 14-TSSOP (0.173", 4.40mm Width) package.
