MAX11043ATL+

MAX11043ATL+ High-Performance 16-Bit ADC/DAC

The MAX11043ATL+ from Analog Devices Inc./Maxim Integrated is a high-precision 16-bit analog-to-digital converter designed for demanding data acquisition applications. With an impressive 9.6 MSPS sampling rate across 8 channels, this ADC delivers exceptional performance for industrial, medical, and telecommunications systems.

Key Features & Benefits

• 16-bit resolution ensures precise signal conversion with minimal noise
• 8 independent channels enable simultaneous multi-signal monitoring
• 9.6 MSPS sampling rate captures fast-changing signals accurately
• Serial data interface simplifies integration and reduces pin count
• Wide operating temperature range (-40°C to 125°C) for harsh environments
• Low power consumption (3V to 3.6V supply) ideal for battery-powered applications
• Surface mount 40-TQFN package saves board space in compact designs
• RoHS compliant meets environmental standards

Applications

Perfect for precision instrumentation, medical imaging equipment, industrial process control, automated test equipment, and high-speed data acquisition systems requiring reliable, accurate analog-to-digital conversion.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	ADC, DAC
Number of Channels	8
Resolution (Bits)	16 b
Sampling Rate (Per Second)	9.6M
Data Interface	Serial
Voltage Supply Source	Analog and Digital
Voltage - Supply	3V ~ 3.6V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Grade	-
Qualification	-

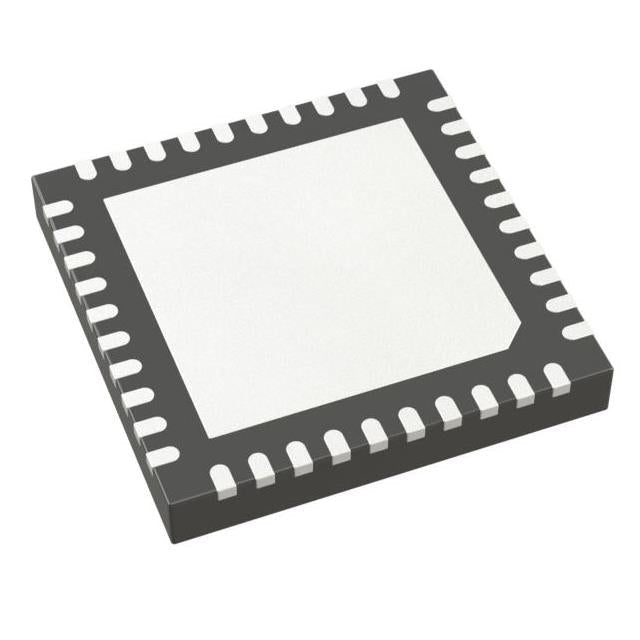

Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-TQFN (6x6)
ROHS
