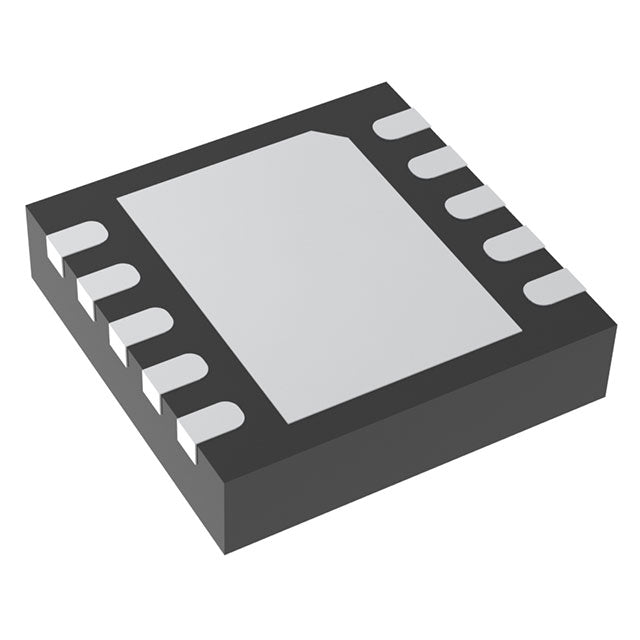

Analog Devices Inc./Maxim Integrated MAX11111ATB+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.45 | $7.45 |
| 15+ | $1.71 | $25.65 |
| 25+ | $1.67 | $41.75 |
| 50+ | $1.58 | $79.00 |
| 100+ | $1.40 | $140.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 3M |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.2V ~ 3.6V |
| Voltage - Supply, Digital | 2.2V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) |
| ROHS |  |
The MAX11111ATB+T from Analog Devices is an 8-bit, 2-channel analog-to-digital converter with an exceptional sampling rate of 3M SPS. Its multiplexed sample-and-hold architecture enables fast sequential conversion of two inputs. The SPI interface ensures high-speed data transfer. With an external reference for precision, it operates over a wide temperature range. Packaged in a 10-WFDFN with exposed pad, it is designed for high-performance applications like radar, medical imaging, and industrial automation.
- Extreme Speed: 3M SPS sampling rate for ultra-fast signal conversion.
- Dual-Channel Input: Multiplexed 2-channel design for versatile signal routing.
- Wide Temperature Range: -40°C to 125°C for automotive and industrial use.
- External Reference: Allows precise, ratiometric measurements.
- Compact WFDFN Package: Exposed pad enhances thermal performance in dense designs.
High-Speed Data Acquisition
The 3M SPS sampling rate and 8-bit resolution make it perfect for high-throughput DAQ systems in test and measurement equipment.
Radar and Communication Systems
In IF (intermediate frequency) sampling applications, the fast conversion rate allows digitization of wideband signals for software-defined radio.
Automotive ADAS Sensors
With a -40°C to 125°C range and 2-channel MUX, it can process signals from multiple radar or camera sensors in advanced driver-assistance systems.
Industrial High-Speed Sorting
In optical sorting machines, the 3M SPS rate enables rapid pixel-level analysis for real-time object detection and classification.
Medical Ultrasound
The high-speed sampling is suitable for digitizing ultrasound transducer arrays, improving image resolution in diagnostic equipment.
Power Electronics Control
In switch-mode power supplies, the fast ADC can monitor voltage and current in real-time for digital loop control, improving transient response.
- Q: What is the MAX11111ATB+T ADC type?
- A: It is an 8-bit successive-approximation ADC with a multiplexer and sample-and-hold (MUX-S/H-ADC).
- Q: What is the resolution?
- A: The resolution is 8 bits.
- Q: What is the sampling rate?
- A: It offers a high sampling rate of 3M SPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses the SPI interface.
- Q: What is the package type?
- A: It is available in a 10-WFDFN package with exposed pad.
