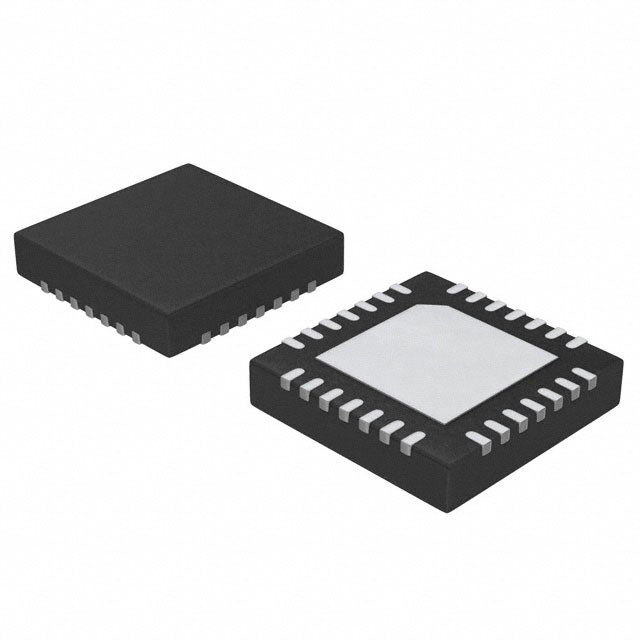

Analog Devices Inc./Maxim Integrated MAX11128ATI/V+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.59 | $13.59 |
| 15+ | $13.17 | $197.55 |
| 25+ | $12.88 | $322.00 |
| 50+ | $12.16 | $608.00 |
| 100+ | $10.73 | $1,073.00 |
| N+ | $2.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 16 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 1.5V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| ROHS |  |
The MAX11128ATI/V+ is a high-channel-count, 12-bit analog-to-digital converter from Analog Devices/Maxim Integrated. It features 16 multiplexed input channels and a fast 1 MSPS sampling rate, making it ideal for multi-sensor data acquisition systems. The SPI interface ensures easy integration with modern digital controllers. Housed in a compact 28-WFQFN package, this ADC is designed for space-constrained and harsh environments, with an operating temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications.
- 16-Channel Multiplexing: Allows a single ADC to monitor many analog signals, reducing component count and board space.
- High-Speed Sampling: 1 MSPS throughput ensures that all channels can be scanned quickly, enabling real-time monitoring of fast-changing signals.
- Automotive-Grade Temperature Range: Operates reliably from -40°C to 125°C, suitable for under-the-hood and industrial applications.
- Compact Package: The 28-WFQFN exposed pad package minimizes PCB footprint and improves thermal performance.
Multi-Sensor Data Acquisition
The MAX11128ATI/V+ with its 16 input channels and 1 MSPS sampling rate is perfect for systems that need to monitor multiple sensors, such as in industrial automation and process control.
Automotive Battery Management
Its wide temperature range (-40°C to 125°C) and 12-bit accuracy make it suitable for monitoring battery cell voltages and temperatures in electric and hybrid vehicles.
Portable Medical Devices
The SPI interface and compact 28-WFQFN package allow for integration into portable medical monitors, where multiple vital signs need to be digitized efficiently.
Smart Grid and Energy Monitoring
It can be used in smart meters to digitize voltage and current from multiple phases, enabling accurate energy measurement and power quality analysis.
Robotics and Motion Control
In robotics, this ADC can read multiple position and current sensors simultaneously, providing the data needed for precise motor control and feedback loops.
Environmental Monitoring Stations
With 16 channels, it can interface with various environmental sensors (temperature, humidity, gas) for comprehensive weather and air quality monitoring.
- Q: What type of ADC is the MAX11128ATI/V+?
- A: It is a 12-bit analog-to-digital converter with a multiplexed sample-and-hold (MUX-S/H) architecture.
- Q: What is the resolution?
- A: It provides 12-bit resolution, balancing precision and speed for a variety of applications.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 1 MSPS (mega samples per second).
- Q: How many input channels does it have?
- A: It features 16 input channels, allowing for multiplexed reading of multiple analog sources.
- Q: What digital interface does it use?
- A: It uses a standard SPI (Serial Peripheral Interface) for communication with microcontrollers.
- Q: What is the operating temperature range?
- A: It operates over an extended automotive temperature range of -40°C to 125°C.
