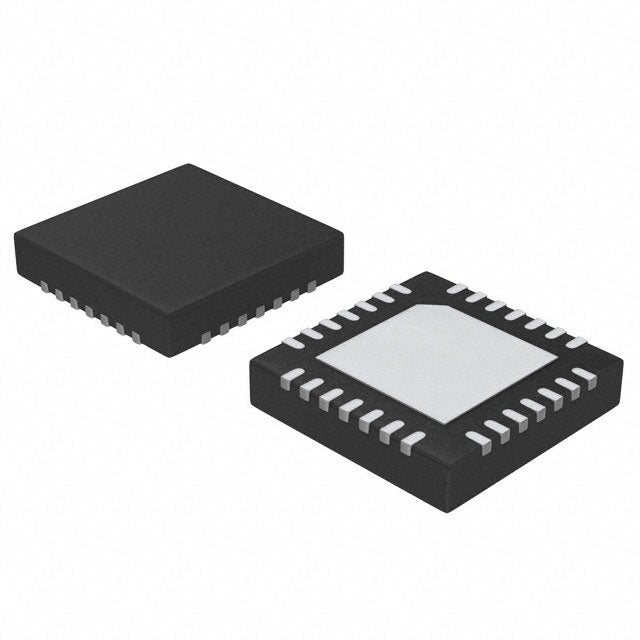

Analog Devices Inc./Maxim Integrated MAX11135ATI+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.15 | $13.15 |
| 15+ | $3.03 | $45.45 |
| 25+ | $2.96 | $74.00 |
| 50+ | $2.80 | $140.00 |
| 100+ | $2.47 | $247.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| ROHS |  |
The MAX11135ATI+T is a 12-bit, multi-channel analog-to-digital converter from Analog Devices/Maxim Integrated. It offers a sampling rate of 500k SPS and supports 2 or 4 input channels via an integrated multiplexer. The device uses a SPI interface and is housed in a 28-WFQFN package. Designed for harsh environments, it operates from -40°C to +125°C, making it suitable for automotive and industrial applications.
- Multi-Channel Flexibility: Supports 2 or 4 inputs, reducing system complexity.
- High-Temperature Operation: Rated for 125°C, ideal for automotive and industrial use.
- Fast Sampling: 500k SPS enables high-speed multi-channel data acquisition.
- Space-Saving Package: 28-WFQFN with exposed pad aids thermal management.
Multi-Sensor Data Acquisition
The 4-channel input capability of the MAX11135 allows a single ADC to digitize multiple analog signals, reducing component count in data acquisition systems.
Automotive Sensor Monitoring
With an operating temperature range up to 125°C, this ADC is suitable for automotive applications like battery voltage monitoring and motor position sensing.
Industrial Automation
In PLCs and industrial controllers, the 500k SPS sampling rate enables fast, accurate conversion of multiple process variables for real-time control.
Portable Medical Devices
The compact WFQFN package and low power consumption make it ideal for handheld medical devices that monitor multiple physiological signals.
Test and Measurement Equipment
The MUX-S/H architecture and SPI interface simplify the design of multi-channel benchtop instruments, providing reliable and repeatable measurements.
- Q: What is the resolution of the MAX11135ATI+T?
- A: It is a 12-bit ADC.
- Q: What is the sampling rate?
- A: It has a sampling rate of 500k SPS.
- Q: How many channels does it have?
- A: It has 2 or 4 input channels.
- Q: What interface does it use?
- A: It uses a SPI interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 28-WFQFN Exposed Pad package.
