Analog Devices Inc./Maxim Integrated MAX11138ATI+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.25 | $11.25 |
| 15+ | $2.59 | $38.85 |
| 25+ | $2.53 | $63.25 |
| 50+ | $2.39 | $119.50 |
| 100+ | $2.11 | $211.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

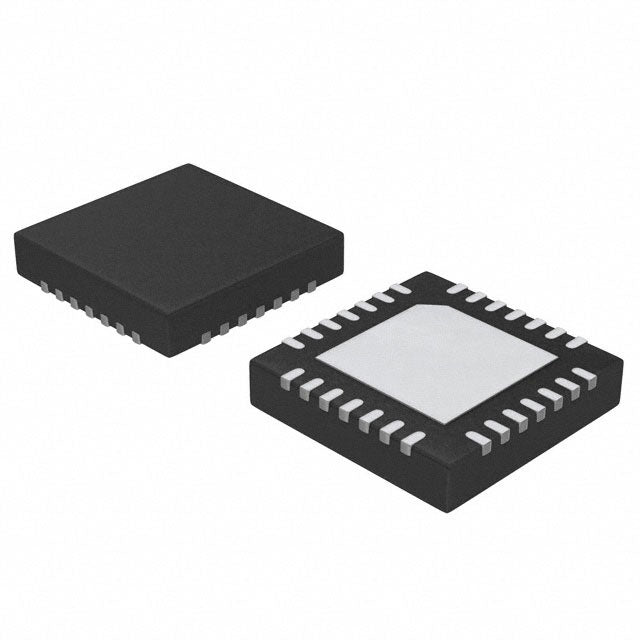

| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| ROHS |  |
The Analog Devices MAX11138ATI+T is a versatile 10-bit analog-to-digital converter (ADC) featuring a configurable 2/4-channel input multiplexer. It offers a fast 500 kSPS sampling rate and communicates via a standard SPI interface. This ADC is designed for multi-channel data acquisition applications where space and power efficiency are critical. Housed in a compact 28-WFQFN package, it operates reliably over a wide temperature range, making it suitable for industrial, automotive, and portable battery-powered devices.
- Multi-Channel Flexibility: The configurable 2/4-channel input MUX allows for monitoring multiple signals with a single ADC, saving space and cost.
- High-Speed Sampling: The 500 kSPS sampling rate enables accurate digitization of fast-changing signals in real-time applications.
- Wide Temperature Range: Rated for -40°C to 125°C, it is suitable for demanding automotive and industrial environments.
- Compact Package: The 28-WFQFN package with exposed pad is ideal for space-constrained designs and provides good thermal dissipation.
Multi-Channel Data Acquisition
The 2/4-channel multiplexer allows this ADC to monitor multiple sensors in a data acquisition system, reducing component count and simplifying design.
Battery-Powered Devices
With a 500 kSPS sampling rate and 10-bit resolution, it is well-suited for battery-powered devices like portable health monitors that need to sample multiple biometric signals.
Industrial Sensor Monitoring
In industrial settings, this ADC can be used to digitize signals from multiple sensors, such as temperature and pressure, for process monitoring and control.
Automotive Battery Management
The wide temperature range and multi-channel capability make it suitable for automotive battery management systems, where it can monitor cell voltages and temperatures.
Smart Grid and Energy Monitoring
This ADC can be used in smart grid applications to monitor voltage and current from multiple phases, enabling efficient energy management.
Portable Instrumentation
The compact 28-WFQFN package and low power consumption make it ideal for portable instruments like handheld multimeters and environmental testers.
- Q: What is the resolution of the MAX11138ATI+T?
- A: This ADC provides a 10-bit resolution, suitable for applications requiring moderate precision.
- Q: What is the sampling rate?
- A: The MAX11138ATI+T supports a maximum sampling rate of 500 kSPS (500,000 samples per second).
- Q: How many channels does it have?
- A: It has a multiplexed input that supports either 2 or 4 channels, configurable based on the application's needs.
- Q: What interface does it use?
- A: It uses an SPI (Serial Peripheral Interface) for communication with a host processor.
- Q: What is the architecture of this ADC?
- A: The architecture is a MUX-S/H-ADC, which includes an input multiplexer and sample-and-hold circuit for multi-channel acquisition.
- Q: What is the package type?
- A: The device is available in a 28-WFQFN package with an exposed pad for enhanced thermal performance.
