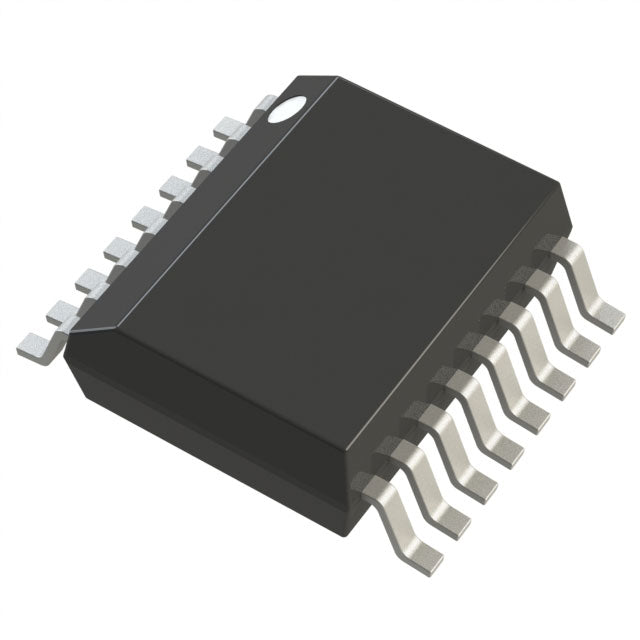

Analog Devices Inc./Maxim Integrated MAX11211EEE+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.10 | $13.10 |
| 15+ | $3.02 | $45.30 |
| 25+ | $2.95 | $73.75 |
| 50+ | $2.79 | $139.50 |
| 100+ | $2.46 | $246.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 480 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| ROHS |  |
The MAX11211EEE+T is an 18-bit analog-to-digital converter from Analog Devices, featuring a single input channel and an SPI interface. It operates at a sampling rate of 480 SPS, balancing speed and precision for demanding measurement tasks. The device relies on an external reference for accurate conversions. Housed in a 16-SSOP package, it operates from -40°C to 85°C, making it suitable for a range of industrial and portable applications.
- High Precision: 18-bit resolution ensures accurate signal representation.
- Fast SPI Interface: Enables efficient communication with microcontrollers.
- Low Power: Suitable for battery-powered devices.
- Compact SSOP Package: Saves board space in space-constrained designs.
- Reliable Operation: Wide temperature range for industrial use.
Precision Weigh Scales
The 18-bit resolution and 480 SPS sampling rate are ideal for industrial weigh scales that require fast and accurate weight measurements.
Temperature Controllers
When used with thermocouples, the MAX11211EEE+T provides the precision needed for closed-loop temperature control in industrial ovens and furnaces.
Data Acquisition Systems
Its SPI interface and high resolution make it a great choice for multi-channel DAQ systems where each channel needs precise conversion.
Battery Monitoring
Can be used in battery management systems to accurately measure cell voltages and currents for state-of-charge estimation.
Portable Scientific Instruments
Low power consumption and small SSOP package make it suitable for field-portable chemical analyzers and environmental monitors.
Automotive Test Equipment
Used in engine test benches and dynamometers to measure torque and speed with high accuracy.
- Q: What is the MAX11211EEE+T?
- A: It is an 18-bit, single-channel analog-to-digital converter from Analog Devices with an SPI interface.
- Q: What is the resolution?
- A: The resolution is 18 bits, offering high precision for measurement systems.
- Q: What is the sampling rate?
- A: The sampling rate is 480 SPS, suitable for low-frequency, high-accuracy applications.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the package type?
- A: It is available in a 16-SSOP package.
