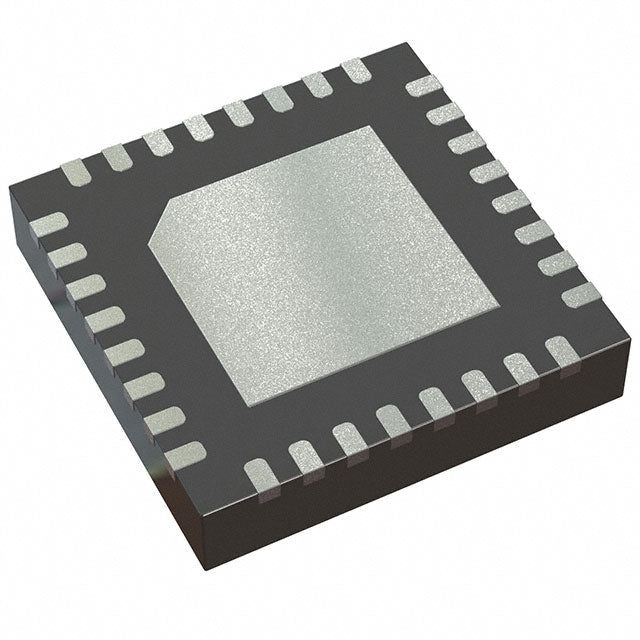

Analog Devices Inc./Maxim Integrated MAX11338ATJ+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.95 | $10.95 |
| 15+ | $2.52 | $37.80 |
| 25+ | $2.47 | $61.75 |
| 50+ | $2.33 | $116.50 |
| 100+ | $2.06 | $206.00 |
| N+ | $0.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | PGA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| ROHS |  |
The MAX11338ATJ+T is a 10-bit, 500k SPS analog-to-digital converter from Analog Devices, designed for high-speed and flexible data acquisition. It offers 2 or 4 configurable input channels and supports both SPI and DSP serial interfaces. The device operates over a wide temperature range and comes in a compact QFN package. Its MUX-S/H architecture ensures accurate sampling of fast-changing signals for industrial and communication applications.
- High-Speed Performance: 500k SPS sampling rate captures fast transients and dynamic signals.
- Flexible Inputs: Configurable 2 or 4 channels adapt to different system requirements.
- Dual Interface Support: SPI and DSP interfaces provide compatibility with a wide range of controllers and DSPs.
- Extended Temperature Range: -40°C to 125°C operation ensures reliability in extreme conditions.
High-Speed Data Acquisition
With 500k SPS sampling and 10-bit resolution, the MAX11338 is perfect for high-speed data acquisition systems in test and measurement equipment.
Industrial Automation
Monitor multiple analog signals in PLCs and industrial robots with the flexible 2/4-channel input and fast conversion rate.
Motor Control
Sample current and voltage feedback signals at high speed for precise motor control in servo drives and inverters.
Medical Imaging
The high sampling rate supports digitization of fast analog signals in ultrasound and other medical imaging devices.
Communication Systems
Use in base stations and software-defined radios to digitize I/Q signals with high throughput.
Automotive Radar
The wide temperature range and high speed make it suitable for automotive radar signal processing.
- Q: What is the resolution of the MAX11338?
- A: The MAX11338 is a 10-bit analog-to-digital converter, offering a balance of speed and resolution.
- Q: What is the sampling rate?
- A: It supports a high sampling rate of 500k SPS for fast signal acquisition.
- Q: How many channels does it have?
- A: It has 2 or 4 input channels, configurable based on the application needs.
- Q: What interfaces are supported?
- A: It supports both SPI and DSP-compatible serial interfaces for flexible connectivity.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture with an input multiplexer and sample-and-hold circuit.
- Q: What is the operating temperature range?
- A: It operates over an extended temperature range of -40°C to 125°C.
