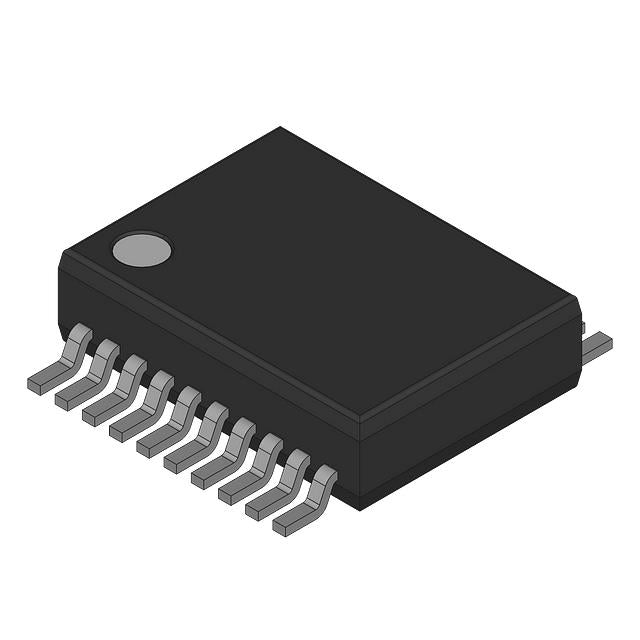

Analog Devices Inc./Maxim Integrated MAX1134BEAP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $135.28 | $135.28 |
| 15+ | $31.11 | $466.65 |
| 25+ | $30.44 | $761.00 |
| 50+ | $28.75 | $1,437.50 |
| 100+ | $25.37 | $2,537.00 |
| N+ | $5.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 150 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | MICROWIRE, QSPI, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Features | True Bipolar |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
The MAX1134BEAP from Analog Devices is a high-precision, 16-bit analog-to-digital converter (ADC) designed for applications requiring excellent accuracy. It features a single input channel and a sampling rate of 150 samples per second (SPS). The device supports multiple serial interfaces including SPI, QSPI, and MICROWIRE, offering flexible integration with various microcontrollers. Packaged in a 20-pin SSOP, this ADC is well-suited for precision measurement applications such as weigh scales, temperature sensing, and portable medical instruments.
- Exceptional Precision: 16-bit resolution provides very fine granularity, essential for high-accuracy measurement applications.
- Low Power Consumption: Ideal for battery-powered portable devices where power efficiency is critical.
- Flexible Serial Interface: Supports SPI, QSPI, and MICROWIRE, making it compatible with a wide range of microcontrollers.
- Stable Performance: External reference input allows for precise and stable voltage reference selection, improving measurement accuracy.
Precision Weigh Scales
The 16-bit resolution and low sampling rate of the MAX1134BEAP are ideal for weigh scale applications, providing the fine detail needed for accurate weight measurement.
Temperature Measurement
For thermocouple and RTD signal conditioning, this ADC's high resolution ensures precise temperature readings in industrial process control and laboratory equipment.
Portable Medical Devices
In battery-powered medical devices like glucose meters and pulse oximeters, the low power consumption and high precision of the MAX1134BEAP are critical for accurate patient monitoring.
Data Logging Systems
For environmental monitoring, this ADC can digitize slow-changing signals like humidity and pressure with high accuracy, making it suitable for long-term data loggers.
Instrumentation Amplifiers
When paired with a precision instrumentation amplifier, the MAX1134BEAP can accurately digitize small differential signals from bridge sensors, enabling precise force or pressure measurements.
- Q: What is the MAX1134BEAP?
- A: It is a 16-bit, single-channel analog-to-digital converter (ADC) from Analog Devices.
- Q: What is the resolution?
- A: The MAX1134BEAP offers a high resolution of 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 150 SPS (samples per second).
- Q: How many input channels does it have?
- A: It has a single (1) analog input channel.
- Q: What interfaces does it support?
- A: It supports MICROWIRE, QSPI, and SPI serial interfaces.
- Q: What is the package type?
- A: It is available in a 20-pin SSOP package.
MAX1134BEAP.pdf
