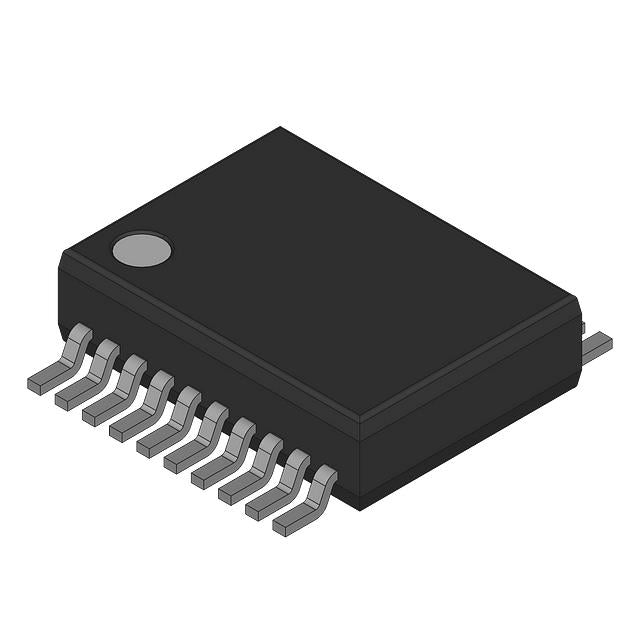

Analog Devices Inc./Maxim Integrated MAX1135BEAP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.11 | $28.11 |
| 15+ | $27.22 | $408.30 |
| 25+ | $26.63 | $665.75 |
| 50+ | $25.15 | $1,257.50 |
| 100+ | $22.19 | $2,219.00 |
| N+ | $4.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 150 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | MICROWIRE, QSPI, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Features | True Bipolar |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
The MAX1135BEAP is a precision 16-bit analog-to-digital converter designed for applications requiring high accuracy and low speed. With a sampling rate of 150 SPS and a single input channel, it excels at digitizing slow-moving analog signals from sensors. It features a flexible serial interface supporting MICROWIRE, QSPI, and SPI, making it easy to integrate with a wide range of microcontrollers. The S/H-ADC architecture ensures accurate sampling, and its 20-SSOP package is ideal for space-constrained designs.
- High Precision: 16-bit resolution provides exceptional detail for accurate measurement of analog signals.
- Low-Speed Optimization: The 150 SPS rate is perfectly matched for sensor applications, reducing noise and power consumption.
- Versatile Serial Interface: Supports MICROWIRE, QSPI, and SPI, ensuring compatibility with various host controllers.
- Compact Package: The 20-SSOP package saves valuable board space in portable and compact designs.
Precision Sensor Digitization
The 16-bit resolution and 150 SPS sampling rate make the MAX1135BEAP perfect for digitizing slow-changing, high-precision sensors like thermocouples, strain gauges, and pressure transducers in industrial process control.
Portable Instrumentation
Its low power consumption and small SSOP package make it suitable for battery-powered multimeters and data loggers that require high accuracy without sacrificing battery life.
Medical Monitoring Devices
In medical devices such as patient monitors, this ADC can accurately digitize vital signs signals (e.g., temperature, heart rate) with the precision needed for reliable diagnostics.
Weigh Scale Systems
The high resolution is ideal for electronic weigh scales, providing the fine granularity needed to measure small weight changes accurately.
Environmental Monitoring
For weather stations or air quality monitors, the MAX1135BEAP can digitize analog outputs from various environmental sensors, ensuring accurate data logging over long periods.
- Q: What is the resolution of the MAX1135BEAP?
- A: The MAX1135BEAP is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 150 SPS (samples per second).
- Q: How many channels does the MAX1135BEAP have?
- A: This device features a single (1) input channel.
- Q: What interfaces are supported?
- A: It supports MICROWIRE, QSPI, and SPI serial interfaces.
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 20-SSOP package.
