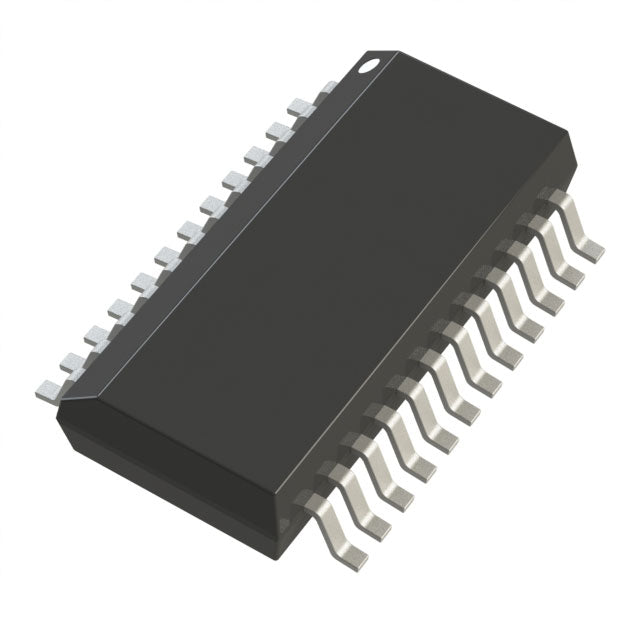

Analog Devices Inc./Maxim Integrated MAX11642EEG+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.95 | $12.95 |
| 15+ | $2.98 | $44.70 |
| 25+ | $2.92 | $73.00 |
| 50+ | $2.75 | $137.50 |
| 100+ | $2.43 | $243.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 300k |
| Number of Inputs | 16 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-QSOP |
| ROHS |  |
The MAX11642EEG+T is an 8-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated, offering 16 input channels and a fast sampling rate of 300k SPS. It communicates via the SPI interface and features a sample-and-hold architecture for accurate signal capture. The device supports both external and internal voltage references, providing design flexibility. Packaged in a 24-SSOP, it operates from -40°C to 85°C. This ADC is ideal for high-channel-count data acquisition, automotive sensor monitoring, and industrial automation systems.
- 16 Channels: Monitors multiple signals with a single device, reducing board space.
- High Speed: 300k SPS sampling rate enables real-time monitoring of fast-changing signals.
- Flexible Reference: Supports both external and internal references for design versatility.
- SPI Interface: High-speed serial communication with microcontrollers.
High-Speed Multi-Channel Monitoring
With 16 channels and a 300k SPS sampling rate, the MAX11642EEG+T is ideal for monitoring many analog signals in industrial control systems, such as motor currents and voltages.
Battery Management Systems
The high channel count allows monitoring of individual cell voltages in large battery packs, ensuring safe and efficient operation in electric vehicles.
Data Acquisition Cards
Its fast sampling rate and SPI interface make it suitable for PC-based data acquisition cards used in laboratory testing and measurement.
Automotive Sensor Arrays
The wide temperature range and 16-channel multiplexing make it perfect for reading multiple automotive sensors like throttle position and manifold pressure.
Smart Grid Monitoring
This ADC can digitize multiple power quality parameters simultaneously, enabling real-time monitoring in smart grid infrastructure.
- Q: What is the resolution of the MAX11642EEG+T?
- A: The MAX11642EEG+T is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 300k SPS (samples per second).
- Q: How many channels are available?
- A: It features 16 input channels.
- Q: What interface does this ADC use?
- A: It uses the SPI interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 24-SSOP (0.154", 3.90mm Width) package.
