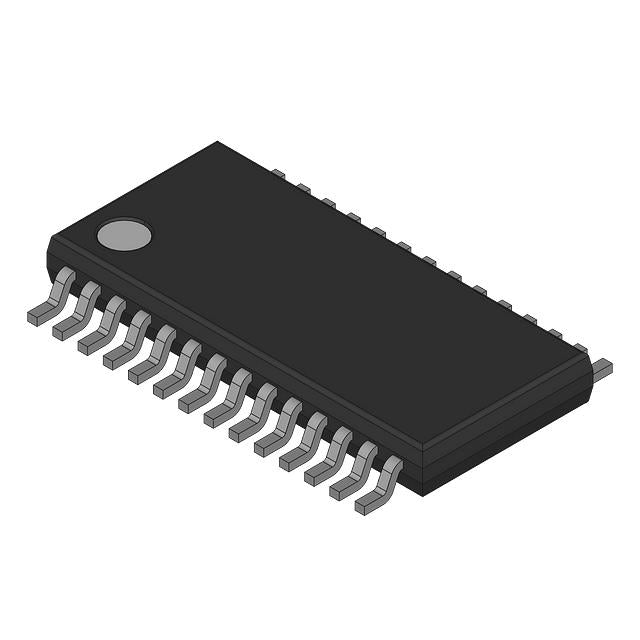

Analog Devices Inc./Maxim Integrated MAX1165BCUI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.40 | $16.40 |
| 15+ | $15.88 | $238.20 |
| 25+ | $15.53 | $388.25 |
| 50+ | $14.67 | $733.50 |
| 100+ | $12.95 | $1,295.00 |
| N+ | $2.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 165k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| ROHS |  |
The MAX1165BCUI+ from Analog Devices is a high-resolution 16-bit analog-to-digital converter (ADC) featuring a fast parallel interface. It operates at a sampling rate of 165 kSPS and accepts a single analog input. The device uses a SAR architecture and supports both external and internal voltage references for design flexibility. Housed in a compact 28-TSSOP package, this ADC is designed for applications requiring high precision and speed, such as industrial control, test equipment, and medical instrumentation.
- High Resolution: 16-bit output ensures excellent signal fidelity for precision applications.
- Fast Parallel Interface: Enables high-speed data transfer to microprocessors and DSPs.
- Flexible Reference Options: Supports both external and internal references for design versatility.
- Compact Package: The 28-TSSOP package saves board space in dense designs.
High-Speed Industrial Control
The parallel interface and 165 kSPS sampling rate make the MAX1165BCUI+ suitable for high-speed industrial control loops where fast and accurate data conversion is required.
Precision Test Equipment
Its 16-bit resolution is ideal for precision test and measurement equipment, such as spectrum analyzers and waveform digitizers, ensuring accurate signal representation.
Medical Imaging Systems
The high resolution and speed are beneficial in medical imaging applications like ultrasound, where precise analog signal processing is critical.
Audio Processing
With its high resolution, this ADC can be used in professional audio equipment for digitizing analog audio signals with high fidelity.
Data Acquisition Cards
The parallel interface makes it easy to integrate into data acquisition cards for PCs, providing high-speed, high-resolution analog input capabilities.
- Q: What is the resolution of the MAX1165BCUI+?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The MAX1165BCUI+ has a maximum sampling rate of 165 kSPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the architecture?
- A: It uses a SAR architecture with a sample-and-hold (S/H) circuit.
- Q: What is the package type?
- A: It is available in a 28-pin TSSOP package.
