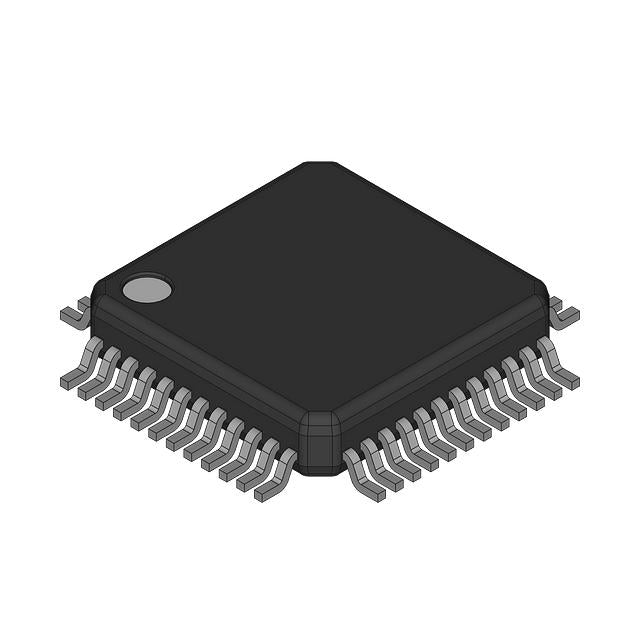

Analog Devices Inc./Maxim Integrated MAX1182ECM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $63.32 | $63.32 |
| 15+ | $14.56 | $218.40 |
| 25+ | $14.25 | $356.25 |
| 50+ | $13.46 | $673.00 |
| 100+ | $11.87 | $1,187.00 |
| N+ | $2.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
The MAX1182ECM is a high-speed, dual-channel, 10-bit analog-to-digital converter from Analog Devices. It is engineered for applications that demand high sampling rates up to 65 MSPS without compromising accuracy. The parallel interface facilitates seamless integration with high-speed digital systems. Its dual-channel architecture is perfect for I/Q demodulation and other multi-channel applications, making it a versatile choice for communications, medical, and industrial equipment.
- Exceptional Speed: 65 MSPS sampling rate allows for the digitization of very fast signals, suitable for high-bandwidth applications.
- Dual-Channel Design: Two synchronized ADCs enable simultaneous sampling, critical for phase-sensitive measurements.
- High Dynamic Performance: 10-bit resolution provides excellent signal-to-noise ratio for demanding applications.
- Thermally Efficient Package: The exposed pad in the 48-TQFP package improves heat dissipation, ensuring stable operation.
High-Performance Communication Systems
The 65 MSPS sampling rate and 10-bit resolution make the MAX1182ECM ideal for digitizing IF signals in base stations and software-defined radios.
Medical Imaging Equipment
In ultrasound and MRI systems, the dual channels and high speed allow for simultaneous processing of multiple transducer signals, improving image resolution.
Radar and Sonar Processing
The high dynamic range and speed are critical for capturing reflected pulses in radar and sonar systems, enabling accurate target detection.
Test and Measurement Instruments
Digital oscilloscopes and spectrum analyzers benefit from the MAX1182ECM's high sampling rate to capture transient events with high fidelity.
Professional Video Digitization
Its speed and resolution are suitable for digitizing high-definition video signals in broadcasting and professional video capture equipment.
Industrial High-Speed Data Acquisition
For applications like motor control and vibration analysis, this ADC provides the necessary speed to capture fast-changing signals.
- Q: What is the MAX1182ECM?
- A: It is a 10-bit, dual-channel, high-speed analog-to-digital converter from Analog Devices (Maxim Integrated).
- Q: What is the maximum sampling rate?
- A: The MAX1182ECM can sample at up to 65 MSPS (65M SPS).
- Q: What is the resolution?
- A: It provides 10-bit resolution, offering a good balance between speed and precision.
- Q: How many channels does it have?
- A: It has 2 channels, enabling simultaneous sampling of two analog inputs.
- Q: What interface does it use?
- A: It uses a parallel digital interface for high-throughput data transfer.
- Q: What is the package type?
- A: It comes in a 48-TQFP Exposed Pad package, which aids in thermal dissipation.
