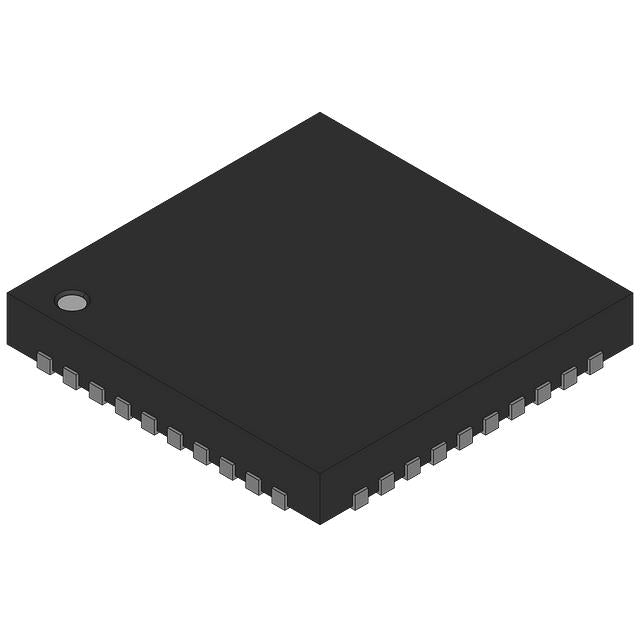

Analog Devices Inc./Maxim Integrated MAX1209ETL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $61.64 | $61.64 |
| 15+ | $14.18 | $212.70 |
| 25+ | $13.87 | $346.75 |
| 50+ | $13.10 | $655.00 |
| 100+ | $11.56 | $1,156.00 |
| N+ | $2.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN-EP (6x6) |
The MAX1209ETL is a high-performance 12-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated, designed for ultra-high-speed applications. With a sampling rate of 80M SPS and a single channel, it excels in video, radar, and communication systems. The parallel interface ensures fast data transfer to FPGAs or DSPs. Housed in a compact 40-WFQFN package, it operates reliably from -40°C to 85°C, making it a robust choice for demanding industrial and professional applications.
- Extreme Speed: 80M SPS sampling rate supports high-bandwidth signal capture.
- Parallel Output: High-speed parallel interface minimizes data transfer bottlenecks.
- Flexible Reference: Supports both external and internal references for design flexibility.
- Compact Thermal Package: 40-WFQFN with exposed pad enhances heat dissipation for reliable operation.
High-Speed Imaging Systems
The 80M SPS sampling rate makes the MAX1209ETL ideal for digitizing video signals in medical imaging, machine vision, and security cameras, ensuring high frame rates and image clarity.
Radar and Communication Receivers
In radar systems and wideband communication receivers, this ADC's high speed and parallel interface enable direct digitization of intermediate frequency signals for digital signal processing.
Test and Measurement Equipment
Digital oscilloscopes and spectrum analyzers benefit from the 12-bit resolution and 80M SPS rate, providing accurate waveform capture for debugging and analysis.
Broadcast Video Equipment
Professional video production and broadcasting equipment use this ADC to convert analog video signals to digital format with high fidelity.
Industrial Inspection
In automated optical inspection systems, the high-speed conversion supports real-time image processing for quality control in manufacturing lines.
- Q: What is the resolution of the MAX1209ETL?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 80M SPS (80 million samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package and temperature range?
- A: It comes in a 40-WFQFN exposed pad package and operates from -40°C to 85°C.
