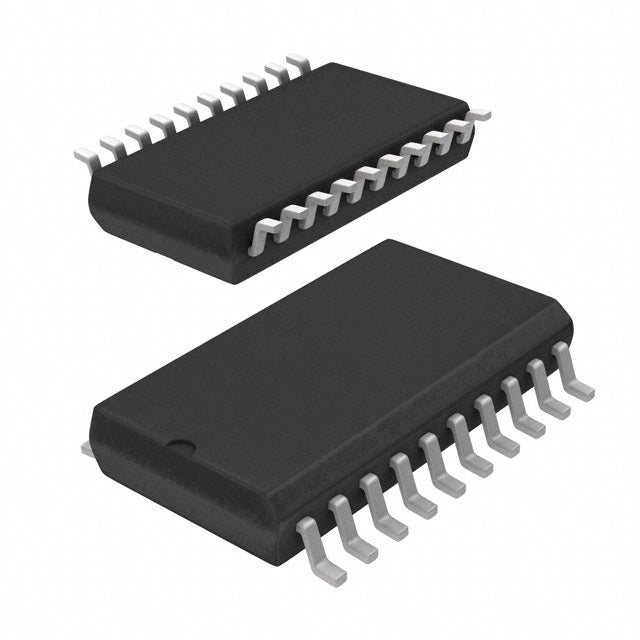

Analog Devices Inc./Maxim Integrated MAX120EWG+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $196.15 | $196.15 |
| 15+ | $45.12 | $676.80 |
| 25+ | $44.14 | $1,103.50 |
| 50+ | $41.68 | $2,084.00 |
| 100+ | $36.78 | $3,678.00 |
| N+ | $7.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -10.8V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The MAX120EWG+ is a high-speed, 12-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated. It features a single channel and a sampling rate of 500k SPS, with a parallel interface for rapid data transfer. This ADC supports both external and internal references, offering flexibility in system design. It is ideal for applications requiring high-speed and accurate signal conversion, such as medical instrumentation, industrial automation, and data acquisition systems.
- High-Speed Performance: The 500k SPS sampling rate enables the capture of fast-changing signals with high fidelity.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Surface-Mount Package: The 24-SOIC package is suitable for automated assembly, reducing manufacturing costs.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for harsh environments.
High-Speed Data Acquisition
The 500k SPS sampling rate makes the MAX120EWG+ suitable for high-speed data acquisition systems, such as those used in vibration analysis and transient recording.
Medical Instrumentation
Its speed and 12-bit resolution are well-suited for digitizing signals in medical devices like ultrasound equipment and patient monitoring systems.
Digital Signal Processing Front-End
The parallel interface and high throughput allow it to serve as an effective front-end for DSP processors in communication and audio applications.
Automotive Sensor Interfaces
With its wide temperature range and fast sampling, it can handle sensor signals in automotive engine control units (ECUs) and battery management systems.
Industrial Automation
The MAX120EWG+ can be used in industrial automation for precise, high-speed monitoring of control loop parameters, ensuring responsive and accurate process control.
- Q: What is the resolution of the MAX120EWG+?
- A: The MAX120EWG+ is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 500k SPS (samples per second).
- Q: How many input channels does the MAX120EWG+ have?
- A: It features a single (1) input channel.
- Q: What interface does this ADC use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of the MAX120EWG+?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for this device?
- A: It comes in a 24-SOIC (0.295", 7.50mm Width) package.
