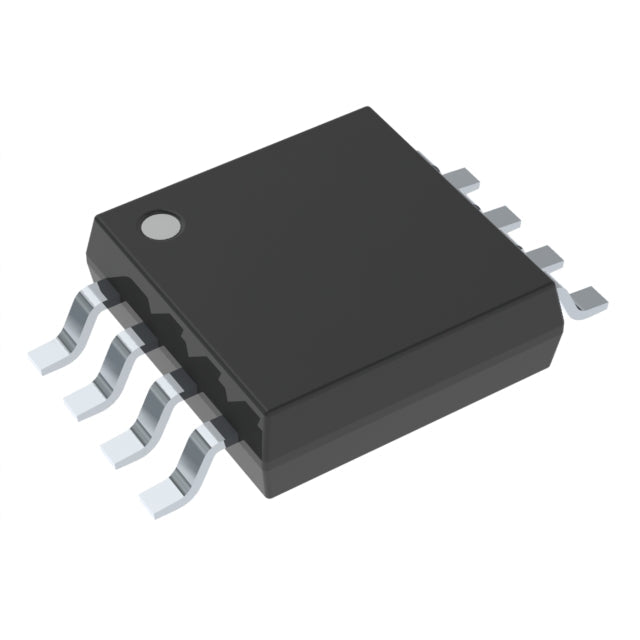

Analog Devices Inc./Maxim Integrated MAX1237EUA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.03 | $17.03 |
| 15+ | $16.50 | $247.50 |
| 25+ | $16.14 | $403.50 |
| 50+ | $15.24 | $762.00 |
| 100+ | $13.45 | $1,345.00 |
| N+ | $2.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 94.4k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| ROHS |  |
The MAX1237EUA+T is a 12-bit, low-power analog-to-digital converter (ADC) from Analog Devices/Maxim Integrated. It features a sampling rate of 94.4k SPS and supports 2 or 4 input channels. With an I2C interface and flexible reference options (external or internal), it is designed for space-constrained, battery-powered applications. Available in an 8-TSSOP/MSOP package, it operates over -40°C to 85°C.
- Low Power Consumption: Ideal for battery-powered and portable applications, extending operational life.
- Simple I2C Interface: Requires only two wires for communication, simplifying PCB layout and saving GPIO pins.
- Flexible Input Configuration: Supports 2 or 4 channels, providing design flexibility for various sensor counts.
- Compact Package: The 8-pin TSSOP/MSOP package is perfect for space-limited designs.
Battery-Powered Sensor Monitoring
The MAX1237's low power consumption and I2C interface make it ideal for battery-operated devices like portable health monitors and environmental sensors.
System Monitoring and Control
In embedded systems, it can monitor supply voltages, temperature, and other analog parameters, providing data for system management and fault detection.
Industrial Process Control
With 4 input channels, it can digitize signals from multiple sensors in industrial automation, enabling precise control loops.
Consumer Electronics
Its small package and I2C interface are well-suited for consumer devices like smart home sensors and audio equipment.
Data Logging
The 94.4k SPS sampling rate is sufficient for logging dynamic signals in portable data acquisition systems.
- Q: What type of ADC is the MAX1237EUA+T?
- A: It is a 12-bit, low-power analog-to-digital converter (ADC) with a sample-and-hold architecture.
- Q: What is the resolution and sampling rate?
- A: It provides 12-bit resolution and a sampling rate of 94.4k SPS.
- Q: How many input channels does it have?
- A: It has 2 or 4 input channels, depending on the configuration.
- Q: What digital interface does it use?
- A: It uses the I2C (Inter-Integrated Circuit) interface for communication.
- Q: What is the reference type?
- A: It supports both external and internal references.
- Q: What is the package type?
- A: It is available in an 8-TSSOP or 8-MSOP package.
