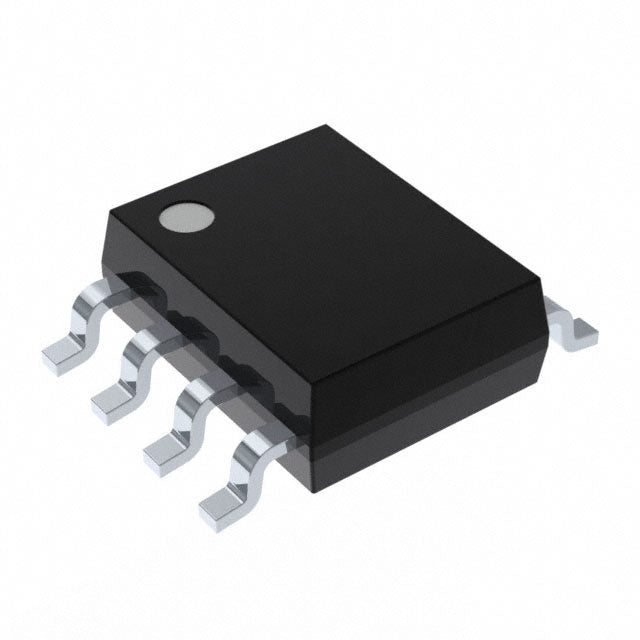

Analog Devices Inc./Maxim Integrated MAX1242ACSA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 73k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The MAX1242ACSA+T is a 10-bit, single-channel analog-to-digital converter from Analog Devices Inc./Maxim Integrated. It offers a sampling rate of 73k SPS and uses a serial SPI interface for communication. The device features a S/H-ADC architecture and supports both external and internal references. Packaged in an 8-SOIC (0.154", 3.90mm Width) package, it operates from 0°C to +70°C. Ideal for precision sensor interfaces, portable instruments, and industrial process control.
- High Resolution: 10-bit output provides fine granularity for precision measurement applications.
- Low Pin Count: SPI interface and 8-SOIC package minimize board space, ideal for compact designs.
- Dual Reference Options: External or internal reference allows optimization between accuracy and component count.
- Simple Integration: Single channel and SPI interface simplify firmware and hardware design.
Precision Sensor Digitization
The 10-bit resolution and 73k SPS sampling rate make the MAX1242ACSA+T suitable for digitizing precision analog sensors like thermocouples, RTDs, and strain gauges. The SPI interface allows easy connection to microcontrollers in industrial and laboratory instruments.
Battery-Powered Data Loggers
With a single channel and SPI interface, this ADC is ideal for low-power data loggers. The 73k SPS rate is sufficient for environmental monitoring (temperature, humidity) while conserving battery life in remote sensing applications.
Portable Medical Devices
In glucose meters or pulse oximeters, the 10-bit ADC provides adequate resolution for bio-signal processing. The small 8-SOIC package and SPI interface enable compact, low-cost medical device designs.
Industrial Process Transmitters
For 4-20 mA loop transmitters, the MAX1242ACSA+T can digitize the process variable with 10-bit accuracy. The SPI output simplifies digital calibration and communication with host systems.
Consumer Electronics Calibration
In audio equipment or power supplies, this ADC can be used for self-calibration routines. The 73k SPS rate allows quick measurement of reference voltages during manufacturing or startup.
- Q: What is the resolution of the MAX1242ACSA+T?
- A: The MAX1242ACSA+T is a 10-bit analog-to-digital converter.
- Q: What is the sampling rate of the MAX1242ACSA+T?
- A: It has a sampling rate of 73k SPS.
- Q: How many channels does the MAX1242ACSA+T have?
- A: It has 1 input channel (single-ended).
- Q: What interface does the MAX1242ACSA+T use?
- A: It uses a serial SPI interface.
- Q: What is the architecture of the MAX1242ACSA+T?
- A: It uses a S/H-ADC (sample-and-hold) architecture.
- Q: What is the operating temperature range?
- A: It operates from 0°C to +70°C.
