Analog Devices Inc./Maxim Integrated MAX1248ACEE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.85 | $40.85 |
| 15+ | $5.93 | $88.95 |
| 25+ | $5.81 | $145.25 |
| 50+ | $5.48 | $274.00 |
| 100+ | $4.84 | $484.00 |
| N+ | $0.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 133k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| ROHS |  |

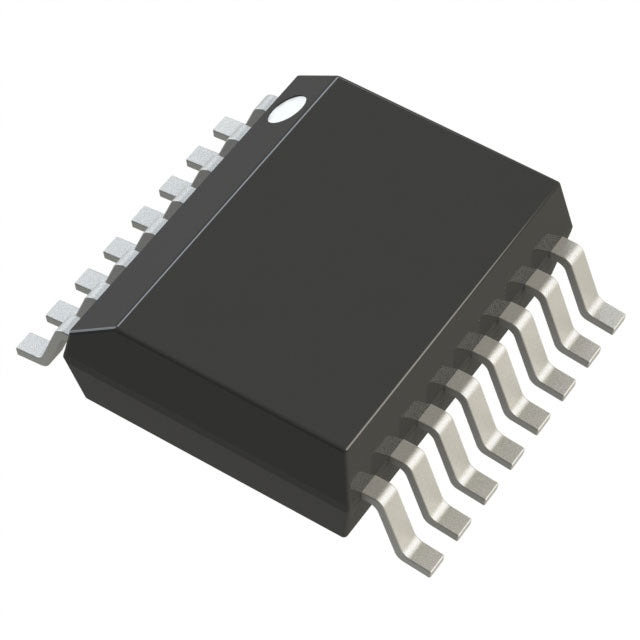

The MAX1248ACEE+ from Analog Devices is a 10-bit analog-to-digital converter offering 2 or 4 multiplexed input channels and a 133 kSPS sampling rate. With an SPI interface and MUX-S/H architecture, it supports both external and internal references. Operating from 0°C to 70°C, it is packaged in a 16-SSOP. Designed for industrial data logging, battery monitoring, and consumer electronics, it delivers reliable performance in a compact form factor.
- Cost-Effective 10-Bit Resolution: Provides sufficient accuracy for many industrial and consumer applications at a lower cost than higher-resolution ADCs.
- Fast SPI Interface: Enables high-speed data transfer to microcontrollers, supporting real-time control applications.
- Multiplexed Inputs: 2 or 4 channels allow monitoring multiple signals with a single ADC, reducing component count.
- Flexible Reference: Internal or external reference options accommodate different accuracy and cost requirements.
- Compact SSOP Package: Saves board space in space-constrained designs while maintaining reliable performance.
Industrial Data Logging
The 10-bit resolution and 133 kSPS sampling rate allow accurate logging of analog signals in industrial environments, capturing temperature, pressure, and vibration data for predictive maintenance systems.
Battery Management Systems
Monitor individual cell voltages in battery packs using 4 multiplexed channels. The SPI interface enables fast communication with battery management controllers, ensuring safe charging and discharging.
Test and Measurement Equipment
Use in benchtop multimeters or data acquisition units where 10-bit resolution provides sufficient accuracy for general-purpose measurements, with SPI enabling high-speed data transfer to display processors.
Consumer Electronics Calibration
Incorporate into audio equipment or power supplies for calibration and monitoring of analog parameters, with the compact SSOP package fitting into space-limited consumer designs.
Building Automation Sensors
Connect temperature, humidity, and occupancy sensors in HVAC control systems. The 0°C to 70°C range suits indoor environments, while SPI allows direct connection to building controllers.
Robotics and Motion Control
Digitize position feedback from potentiometers or current sensors in robotic arms, providing real-time data for precise motor control with 10-bit accuracy and 133 kSPS update rate.
- Q: What is the resolution of the MAX1248ACEE+?
- A: It is a 10-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 133 kSPS (133,000 samples per second).
- Q: How many channels does it have?
- A: It supports 2 or 4 multiplexed input channels.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface).
- Q: What is the architecture?
- A: It features a MUX-S/H-ADC architecture with multiplexer and sample-and-hold.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
