Analog Devices Inc./Maxim Integrated MAX1270ACNG+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 177.30 | Dhs. 177.30 |
| 15+ | Dhs. 171.70 | Dhs. 2,575.50 |
| 25+ | Dhs. 167.97 | Dhs. 4,199.25 |
| 50+ | Dhs. 158.64 | Dhs. 7,932.00 |
| 100+ | Dhs. 139.97 | Dhs. 13,997.00 |
| N+ | Dhs. 27.99 | Price Inquiry |
Request Quote / Inquiry

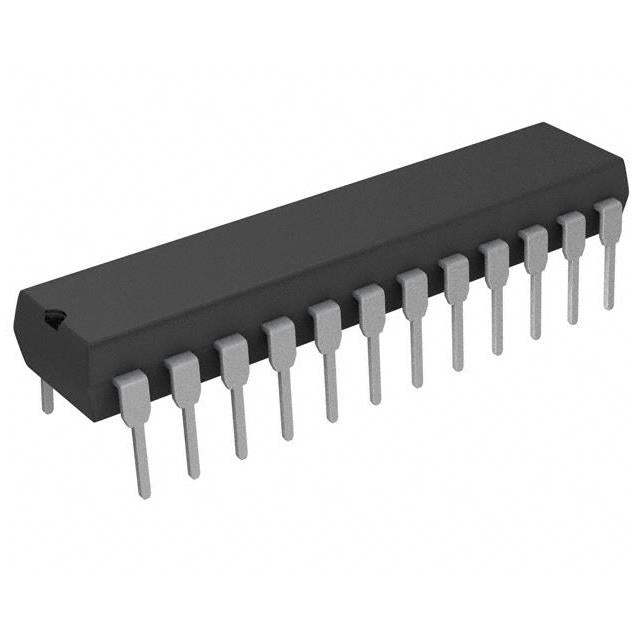

MAX1270ACNG+ 12-Bit 8-Channel Data Acquisition System ADC
The MAX1270ACNG+ from Analog Devices Inc./Maxim Integrated is a high-performance 12-bit data acquisition system (DAS) featuring an 8-channel analog-to-digital converter with 110k samples per second sampling rate. This versatile ADC supports multiple serial interfaces including MICROWIRE™, QSPI™, and SPI™, making it ideal for industrial automation, medical instrumentation, aerospace systems, automotive diagnostics, and telecommunications equipment.
Designed for reliable performance in demanding applications, the MAX1270ACNG+ operates from a single 4.75V to 5.25V supply and functions across a commercial temperature range of 0°C to 70°C. The through-hole 24-DIP package ensures easy integration and long-term availability for legacy system support and new designs requiring proven technology.
Related Products & Resources
Explore our complete selection of ADCs/DACs - Special Purpose components for your data acquisition and conversion needs. Browse thousands of semiconductor components at HQICKEY for aerospace, automotive, industrial, medical, and telecommunications applications. Stay informed with the latest industry insights and technical articles on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 110k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
| ROHS |  |
MAX1270ACNG+.pdf
