Analog Devices Inc./Maxim Integrated MAX1270BCAI+T
Regular price
Dhs. 76.50
Regular price
Dhs. 80.50
Sale price
Dhs. 76.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 76.50 | Dhs. 76.50 |
| 15+ | Dhs. 74.06 | Dhs. 1,110.90 |
| 25+ | Dhs. 72.45 | Dhs. 1,811.25 |
| 50+ | Dhs. 68.43 | Dhs. 3,421.50 |
| 100+ | Dhs. 60.38 | Dhs. 6,038.00 |
| N+ | Dhs. 12.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

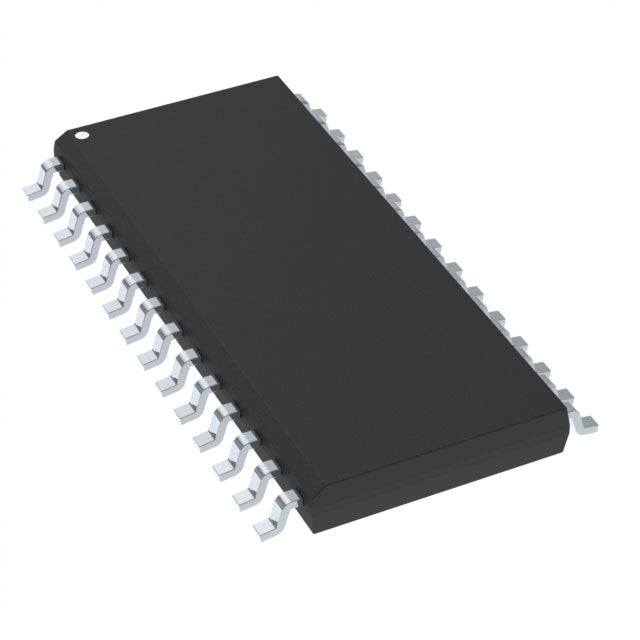

MAX1270BCAI+T - High-Performance 12-Bit Data Acquisition System
The MAX1270BCAI+T from Analog Devices Inc./Maxim Integrated is a precision 8-channel, 12-bit data acquisition system (DAS) featuring an integrated analog-to-digital converter (ADC) with 110kSPS sampling rate. Ideal for industrial control, instrumentation, and embedded system applications requiring accurate multi-channel analog signal conversion.
Key Features & Benefits:
- 8-Channel Multiplexed Input - Monitor multiple analog signals with a single device
- 12-Bit Resolution - Delivers precise digital conversion for accurate measurements
- 110kSPS Sampling Rate - Fast conversion speed for real-time data acquisition
- Flexible Serial Interface - Compatible with SPI™, QSPI™, and MICROWIRE™ protocols
- Single 5V Supply Operation - Simplifies power design (4.75V to 5.25V range)
- Surface Mount Package - 28-SSOP for automated assembly and space-efficient PCB layouts
- Commercial Temperature Range - Operates reliably from 0°C to 70°C
- RoHS Compliant - Meets environmental standards for lead-free manufacturing
Applications:
Perfect for industrial automation, process control, medical instrumentation, test and measurement equipment, automotive diagnostics, and embedded data logging systems.
Technical Specifications:
Ordering Information: Available in tape and reel packaging for volume production. Factory-sealed for quality assurance and traceability.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 110k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
MAX1270BCAI+T.pdf
×
