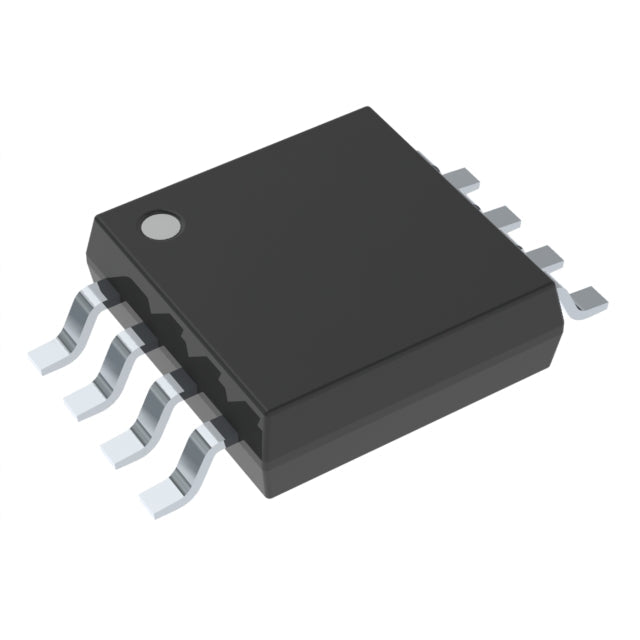

Analog Devices Inc./Maxim Integrated MAX1272EUA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 87k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| ROHS |  |
The MAX1272EUA is a 12-bit, single-channel ADC from Analog Devices/Maxim, featuring a sampling rate of 87 kSPS. It communicates via a standard SPI interface, making it easy to integrate with microcontrollers. The device supports both external and internal references, offering design flexibility. Its S/H architecture ensures accurate conversion of analog signals. Housed in a tiny 8-TSSOP or 8-MSOP package, it is perfect for space-constrained, battery-powered applications. It operates over -40°C to 85°C.
- Small Footprint: 8-pin package is ideal for compact and portable designs.
- Low Power: Suitable for battery-operated devices, extending operational life.
- Flexible Reference: Supports external or internal reference for various input ranges.
- Simple SPI Interface: Easy to connect to any microcontroller with minimal wiring.
Battery-Powered Instruments
Low power consumption and small package make it ideal for portable multimeters and handheld data loggers.
Temperature Sensing
With external reference support, it can accurately digitize thermocouple and RTD signals in industrial temperature controllers.
Pressure Transducers
Used in automotive and industrial pressure monitoring systems where a single, precise analog input is required.
Audio Level Monitoring
The 12-bit resolution and 87 kSPS rate are sufficient for digitizing audio envelope signals for VU meters and level detectors.
Simple Data Acquisition
For single-channel DAQ applications in educational labs and hobbyist projects, it offers a simple SPI interface.
Power Supply Monitoring
Can be used to monitor output voltages in power supplies, providing digital feedback for control and protection circuits.
- Q: What is the resolution of the MAX1272EUA?
- A: It is a 12-bit ADC.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 87 kSPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in an 8-TSSOP or 8-MSOP package.
