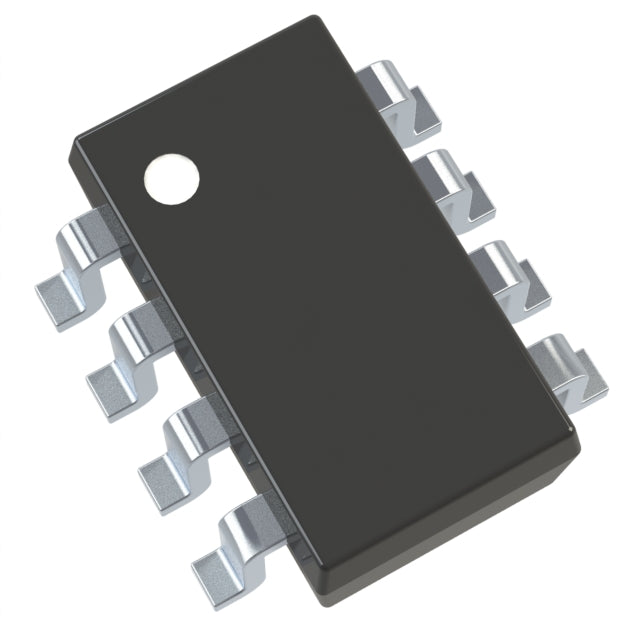

Analog Devices Inc./Maxim Integrated MAX1286EKA+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.04 | $31.04 |
| 15+ | $14.61 | $219.15 |
| 25+ | $14.29 | $357.25 |
| 50+ | $13.50 | $675.00 |
| 100+ | $11.91 | $1,191.00 |
| N+ | $2.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 150k |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
The MAX1286EKA-T is a 12-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated, offering a 150 kSPS sampling rate and two input channels. It features a successive approximation architecture with an external reference for flexible voltage scaling. The SPI interface ensures straightforward integration with digital systems. This ADC is designed for applications requiring high precision and low power, such as portable instrumentation, medical devices, and industrial sensor interfaces. Its compact SOT-23-8 package and wide operating temperature range make it a reliable choice for demanding environments.
- High Precision: 12-bit resolution provides fine granularity for accurate analog-to-digital conversion.
- Dual-Channel Input: Allows multiplexing of two signals, reducing component count in multi-sensor systems.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive applications.
- Compact SOT-23 Package: Minimizes PCB area, ideal for space-constrained portable devices.
Precision Sensor Measurement
The 12-bit resolution and 150 kSPS sampling rate make the MAX1286EKA-T ideal for precision sensor measurement in applications like strain gauges and thermocouples, where accurate data conversion is critical.
Battery Monitoring Systems
With its low power consumption and small SOT-23 package, this ADC is perfect for battery monitoring systems in portable electronics, enabling accurate voltage and current sensing.
Data Acquisition Modules
The dual-channel input and SPI interface allow for compact data acquisition modules that can digitize multiple analog signals with high accuracy for industrial automation.
Medical Instrumentation
The wide temperature range (-40°C to 85°C) and high resolution make it suitable for medical instrumentation such as patient monitoring devices and diagnostic equipment.
Portable Test Equipment
The small footprint and low power requirements make the MAX1286EKA-T an excellent choice for portable test equipment like handheld multimeters and oscilloscopes.
Automotive Sensor Interfaces
The robust temperature range and SPI interface enable reliable use in automotive sensor interfaces for monitoring pressure, temperature, and position.
- Q: What is the MAX1286EKA-T ADC?
- A: It is a 12-bit successive approximation (S/H-ADC) analog-to-digital converter with an external reference.
- Q: What is the resolution of the MAX1286EKA-T?
- A: It provides a 12-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: The MAX1286EKA-T supports a sampling rate of 150 kSPS (150k samples per second).
- Q: How many channels does it have?
- A: It has 2 input channels for multiplexed signal acquisition.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface) for digital communication.
- Q: What is the package type?
- A: It is available in a compact SOT-23-8 package.
