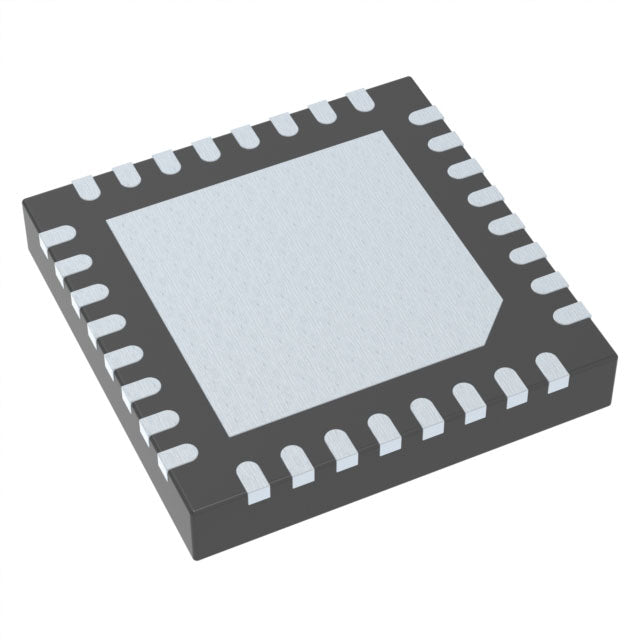

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX1340BETX+
MAX1340BETX+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 94.25 AED | Dhs. 94.25 AED |
| 15+ | Dhs. 91.26 AED | Dhs. 1,368.90 AED |
| 25+ | Dhs. 89.28 AED | Dhs. 2,232.00 AED |
| 50+ | Dhs. 84.32 AED | Dhs. 4,216.00 AED |
| 100+ | Dhs. 74.40 AED | Dhs. 7,440.00 AED |
| N+ | Dhs. 14.88 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MAX1340BETX+ - High-Performance 12-Bit ADC/DAC Converter
The MAX1340BETX+ from Analog Devices (Maxim Integrated) is a precision 8-channel, 12-bit analog-to-digital and digital-to-analog converter engineered for industrial applications demanding accurate signal conversion and long-term reliability. With a 225kSPS sampling rate and versatile serial interface options (SPI, QSPI, MICROWIRE), this device delivers consistent performance across demanding environments from -40°C to 85°C.
Key Features & Benefits
- 12-bit resolution ensures precise analog signal conversion with minimal error
- 8 independent channels enable simultaneous multi-signal processing and monitoring
- 225kSPS sampling rate provides fast data acquisition for time-critical applications
- Multiple serial interfaces: SPI, QSPI, MICROWIRE compatible for flexible system integration
- Wide operating temperature range: -40°C to 85°C industrial grade for harsh environments
- Compact 36-TQFN package (6x6mm) optimized for space-constrained PCB designs
- RoHS compliant meeting environmental and regulatory standards
- Long lifecycle support from Analog Devices for sustained production availability
Target Applications
The MAX1340BETX+ is ideal for:
- Industrial control systems requiring multi-channel analog monitoring
- Data acquisition systems for precision measurement and logging
- Process monitoring in manufacturing and automation
- Automotive electronics for sensor interfacing and diagnostics
- Medical instrumentation demanding accuracy and reliability
- Telecommunications equipment for signal processing and conversion
Why Choose MAX1340BETX+?
Backed by Analog Devices' reputation for precision analog technology, the MAX1340BETX+ combines high performance with proven reliability. Its dual ADC/DAC functionality, multiple interface options, and industrial temperature rating make it a versatile solution for OEMs and EMS providers requiring complete traceability and long-term component availability.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | ADC, DAC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 225k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) |
| ROHS |  |
