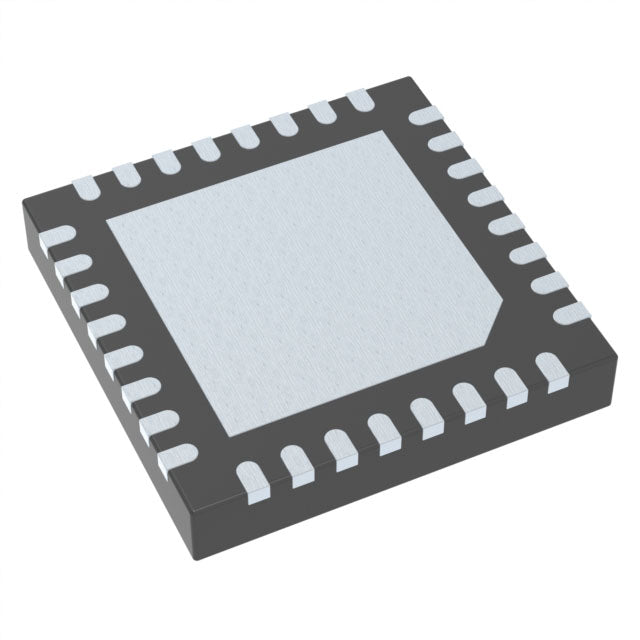

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX1346BETX+
MAX1346BETX+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 68.56 AED | Dhs. 68.56 AED |
| 15+ | Dhs. 66.38 AED | Dhs. 995.70 AED |
| 25+ | Dhs. 64.94 AED | Dhs. 1,623.50 AED |
| 50+ | Dhs. 61.33 AED | Dhs. 3,066.50 AED |
| 100+ | Dhs. 54.11 AED | Dhs. 5,411.00 AED |
| N+ | Dhs. 10.82 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MAX1346BETX+ - High-Performance 12-Bit Quad-Channel ADC/DAC with Integrated FIFO
The MAX1346BETX+ from Analog Devices Inc./Maxim Integrated is a precision mixed-signal solution combining a 4-channel 12-bit analog-to-digital converter (ADC) and digital-to-analog converter (DAC) with integrated FIFO buffer. Engineered for mission-critical applications in aerospace, automotive, industrial control, medical instrumentation, and telecommunications systems.
Key Features & Benefits
- Quad-Channel Architecture: 4 independent channels for simultaneous data acquisition and signal generation
- 12-Bit Resolution: Precision conversion for accurate signal processing and control
- 225kSPS Sampling Rate: High-speed data acquisition for real-time applications
- Flexible Serial Interface: MICROWIRE™, QSPI™, and SPI™ compatible for seamless integration
- Integrated FIFO Buffer: Reduces processor overhead and enables burst data transfer
- Industrial Temperature Range: Reliable operation from -40°C to 85°C for harsh environments
- Compact 36-TQFN Package: Space-efficient 6x6mm footprint for high-density designs
- RoHS Compliant: Meets environmental and regulatory standards
Applications
Ideal for precision instrumentation, process control systems, data acquisition modules, sensor interfaces, automated test equipment, and embedded control systems requiring reliable mixed-signal conversion.
Why Choose HQICKEY?
As an authorized distributor, we guarantee 100% authentic components with full traceability, RoHS/REACH compliance documentation, and long lifecycle availability. Every MAX1346BETX+ ships with complete datasheets and quality certifications to support your critical design requirements.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | ADC, DAC |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 225k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) |
| ROHS |  |
