Analog Devices Inc./Maxim Integrated MAX1346BETX+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry
MAX1346BETX+T - Quad-Channel 12-Bit ADC/DAC with SPI Interface
The MAX1346BETX+T from Analog Devices Inc./Maxim Integrated is a high-performance, quad-channel 12-bit analog-to-digital and digital-to-analog converter designed for precision data acquisition and control applications in industrial, automotive, and telecommunications systems.
Key Features & Benefits
- Quad-Channel Architecture: Four independent 12-bit channels enable simultaneous multi-signal processing
- High-Speed Sampling: 225kSPS sampling rate delivers real-time performance for demanding applications
- Flexible Serial Interface: SPI™, QSPI™, and MICROWIRE™ compatibility simplifies integration with microcontrollers and DSPs
- Wide Operating Range: -40°C to 85°C temperature range supports industrial and automotive environments

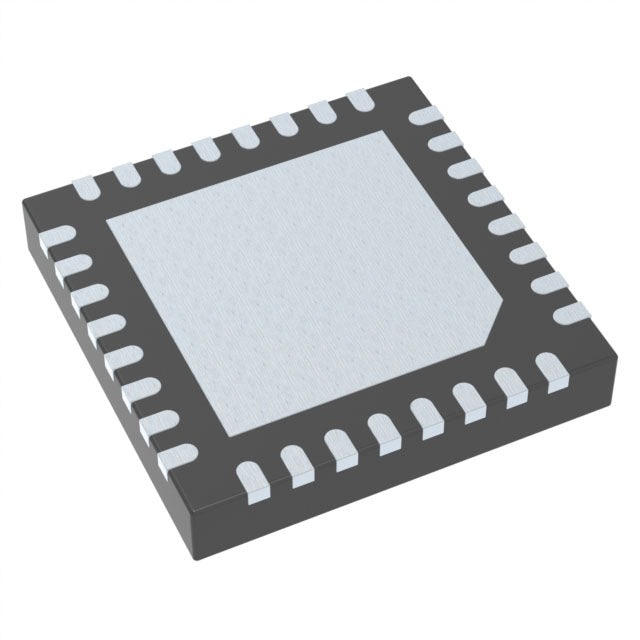

- Compact Surface Mount Package: 36-TQFN (6x6mm) with exposed pad optimizes board space and thermal performance
- Dual Power Supply: Separate analog and digital supplies (4.75V to 5.25V) minimize noise and crosstalk
Typical Applications
- Industrial process control and monitoring systems
- Automotive sensor interfaces and data acquisition
- Medical instrumentation and diagnostic equipment
- Test and measurement equipment
- Multi-channel data logging systems
- Precision control loops and feedback systems
Why Choose Authorized Distribution?
As an authorized distributor, we guarantee 100% authentic MAX1346BETX+T components with full manufacturer traceability, complete documentation packages, and long lifecycle support to protect your design investment and ensure regulatory compliance.
Design Support & Resources
Access reference designs, application notes, evaluation boards, and technical documentation to accelerate your development cycle. Our engineering team provides design-in consultation to optimize performance for your specific application requirements.
Ordering & Availability
Stock availability, volume pricing, and lead times available upon request. We support global shipping through authorized channels with full export documentation and compliance certification.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | | |
| Type | ADC, DAC |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 225k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
