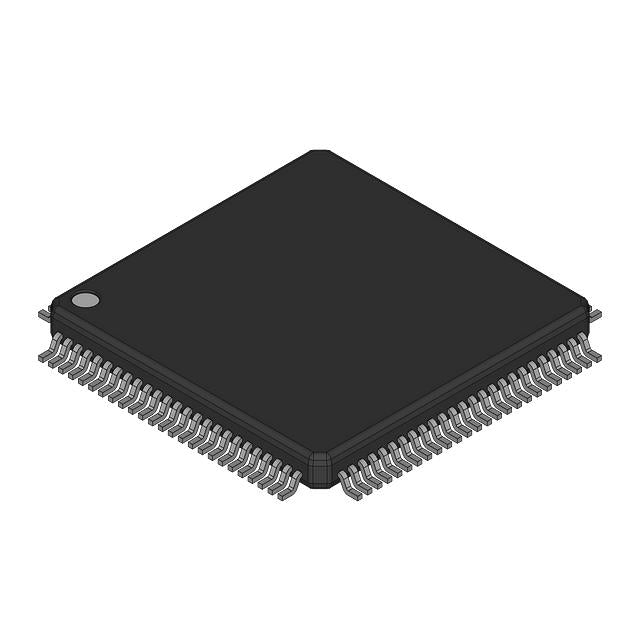

Analog Devices Inc./Maxim Integrated MAX1436ECQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $125.60 | $125.60 |
| 15+ | $28.89 | $433.35 |
| 25+ | $28.26 | $706.50 |
| 50+ | $26.69 | $1,334.50 |
| 100+ | $23.55 | $2,355.00 |
| N+ | $4.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-TQFP-EP (14x14) |
The MAX1436ECQ from Analog Devices is a 12-bit, 40 MSPS 8-channel analog-to-digital converter. It utilizes an LVDS serial interface to deliver high-speed data with reduced noise and pin count. Featuring a sample-and-hold architecture and flexible reference options, this ADC is designed for multi-channel applications including medical imaging, industrial monitoring, and communications.
- 8-Channel Integration: Reduces board space and cost compared to multiple single-channel ADCs.
- LVDS Interface: Provides high-speed data transfer with low EMI, ideal for noise-sensitive systems.
- High-Speed Sampling: 40 MSPS per channel ensures accurate capture of fast-changing signals.
- Exposed Pad Package: Enhances thermal dissipation for reliable operation in demanding environments.
Multi-Channel Data Acquisition
The 8-channel configuration and 40 MSPS sampling rate make the MAX1436ECQ perfect for high-channel-count data acquisition systems, such as sonar or vibration analysis.
Medical Ultrasound Imaging
Multiple channels allow simultaneous processing of transducer array signals, enabling high-resolution real-time imaging in ultrasound machines.
3D Imaging and Radar
The LVDS serial interface reduces pin count and EMI, making it suitable for dense 3D imaging arrays and phased-array radar systems.
Industrial IoT Sensors
With 8 channels, it can digitize multiple industrial sensors (temperature, pressure, flow) simultaneously, improving system throughput.
Communications Infrastructure
High-speed serial output and 12-bit resolution support base station receivers requiring multiple parallel channels for MIMO applications.
Scientific Instrumentation
The wide temperature range and high channel density make it ideal for particle detectors and other scientific instruments needing synchronized multi-channel data.
- Q: What is the resolution of the MAX1436ECQ?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 40 MSPS (40M samples per second).
- Q: How many channels does it have?
- A: It features 8 input channels.
- Q: What interface does it use?
- A: It uses an LVDS serial interface for high-speed data output.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 100-TQFP package with an exposed pad.
