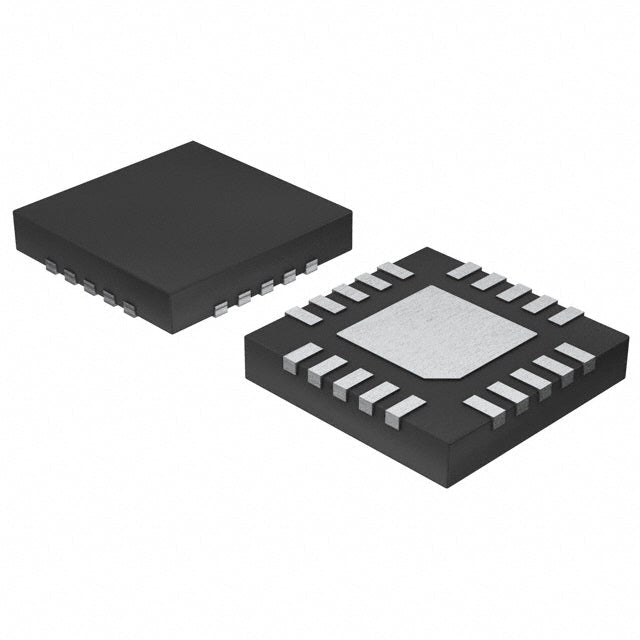

Analog Devices Inc./Maxim Integrated MAX14777GTP+
Regular price
$9.24
Regular price
$9.73
Sale price
$9.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.24 | $9.24 |
| 15+ | $8.95 | $134.25 |
| 25+ | $8.76 | $219.00 |
| 50+ | $8.27 | $413.50 |
| 100+ | $7.30 | $730.00 |
| N+ | $1.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | Beyond-the-Rails™ |
| Packaging | Factory | Tube |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm (Max) |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40µs, 100µs |
| -3db Bandwidth | 380MHz |
| Charge Injection | 225pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -101dB @ 100kHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4x4) |
| ROHS |  |
MAX14777GTP+.pdf
×
