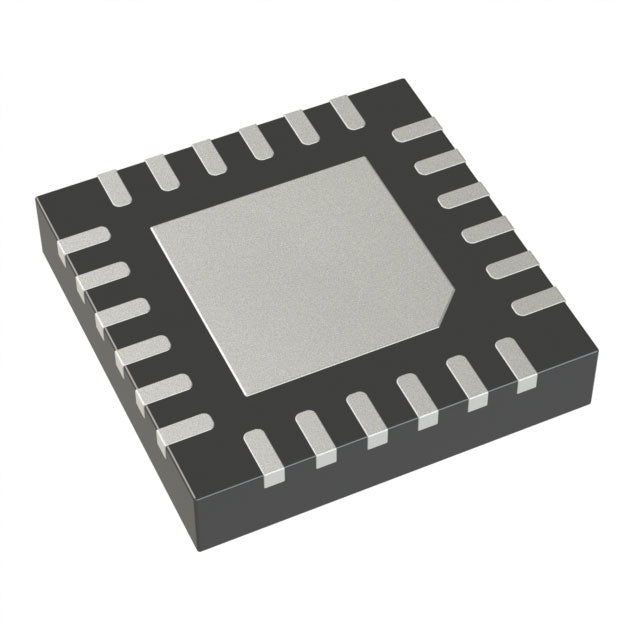

Analog Devices Inc./Maxim Integrated MAX14778ATP+
Regular price
$10.80
Regular price
$11.37
Sale price
$10.80
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.80 | $10.80 |
| 15+ | $10.46 | $156.90 |
| 25+ | $10.23 | $255.75 |
| 50+ | $9.66 | $483.00 |
| 100+ | $8.53 | $853.00 |
| N+ | $1.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T - NO |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 2ms, 1.5ms |
| -3db Bandwidth | 75MHz |
| Charge Injection | 1720pC |
| Channel Capacitance (CS(off), CD(off)) | 78pF |
| Current - Leakage (IS(off)) (Max) | 200nA |
| Crosstalk | -103dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-WQFN Exposed Pad |
| ROHS |  |
MAX14778ATP+.pdf
×
